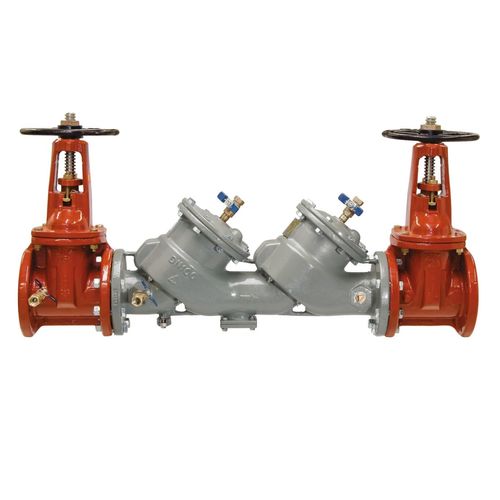

2-1/2" LF850-DOSY Double Check Valve Assembly (Lead Free)

Overview:

This 2 1/2 inch lead free MasterSeries double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for other non-toxic contaminants at the service line entrance. This assembly consists of a fused epoxy ductile iron body, domestic outside stem and yoke resilient seated gate valves, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats. The coating on this backflow assembly uses ArmorTek, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.

Features & Benefits:

• Ductile iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
• Stainless Steel check modules with replaceable seats and disc rubbers
• For non-health hazard applications
• Lead free construction

Specifications:

• ArmorTek Technology    Yes
• Backflow Preventer Type    Double Check Valve Assembly
• Body Finish    Epoxy Coated Using ArmorTek Technology
• Body Material    Ductile Iron
• Body Pattern    Inline
• Brand    FEBCO
• Buy American Act Compliant    NO
• Bypass    No
• Cap And Tether    No
• Disc Material    Silicone
• EAN    643925026047
• Elbow Fitting    No
• Hazard Protection Level    Non Health Hazard
• Hot And Harsh Water    No
• Hydrant Connection    No
• Inlet Connection Size    2 1/2 IN
• Inlet Connection Type    Flanged Joint
• Inlet Shutoff Valve Type    Outside Stem And Yoke Gate Valve
• Lead Free    YES
• Maximum Temperature-Fahrenheit    140
• Maximum Working Pressure-BAR    12.10
• Maximum Working Pressure-PSI    175
• Minimum Temperature - Celsius    0.50
• Minimum Temperature-Fahrenheit    33
• Outlet Connection Size    2 1/2 IN
• Outlet Connection Type    Flanged Joint
• Outlet Shutoff Valve Type    Outside Stem And Yoke Gate Valve
• Part Number    0683074
• Polymer Coating    No
• Protection Type    Backpressure and Backsiphonage
• Seat Material    Stainless Steel
• Series    LF850 Large
• Strainer    No
• Tradename    MasterSeries (R)
