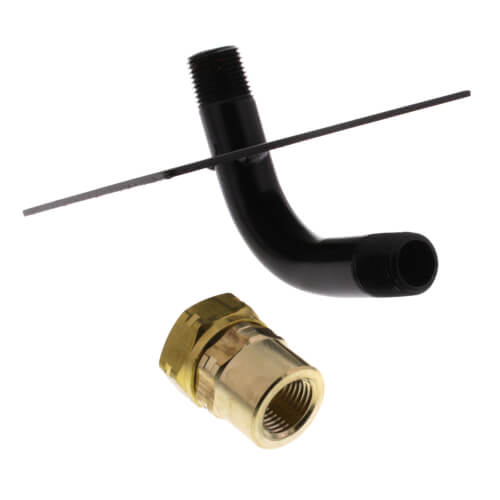

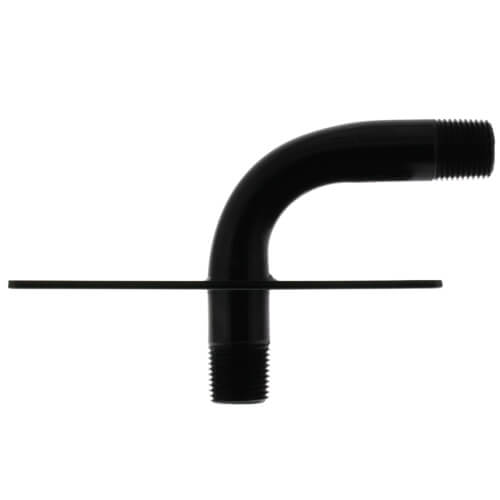

1/2" x 1-1/2" Stub Out x 1/2" Female NPT

Description:
FlashShield™ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST" and listed with CSA®, ICC and IAPMO. The FlashShield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing. The Jacket-LockTM and Metal locking features provide steel tubing protection and continuous conductivity.

Applications:

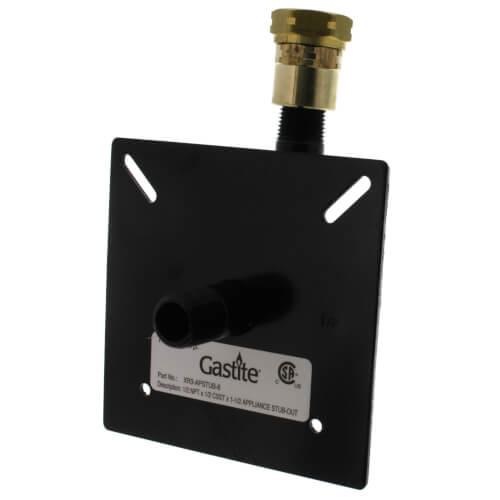

• All Stubs create a fixed point “stub-out” on a wall or floor surface for meter and appliance attachment.
• Angle Stub-Out mounting plate provided at a 72-1/2° angle to facilitate mounting to angled side of most fireplace inserts.


Features:

• Reduces the number of joints in the system where contractors typically fabricate “stub-outs” from rigid pipe nipples, elbows and couplings.
• Provides a fixed-point termination for installations where the appliances are not yet installed.
• Creates a more polished look to the overall installation.
• Fixed Point Termination with Female XR3 Fitting
• Approved for Concealed Use
• Tool-Less Flare Fitting Design
• Metal-to-Metal Seal
• Multi-Point Seal
• Self-Guiding Fitting Assembly
• Jacket-LockTM Feature
• Metal Locking Feature
• Fully Reusable Fitting

Listings:

• CSA: Certificate No. 2728525
• ICC-ES Report No. PMG 1066 and PMG 1155
• IAPMO: File No. C-3250 and Report No. 0239

Technical Data:

• Max. Approved Operating Pressure 25 psi
• Operating Temperature Range -40°F to 160°F
• Fitting Material CA360
• Stub-Out Material Sch 40 Steel pipe
• E-Coat
