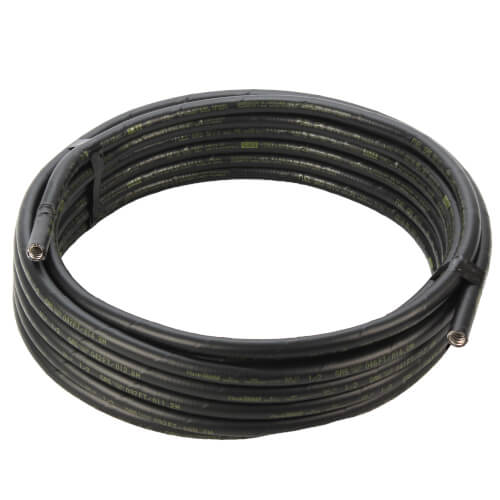

1/2" FlashShield+ Corrugated Stainless Steel Tubing (50 ft Box)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$224.51 each
In Stock
Get 57 Mon, Jul 21
Order by 6PM, receive Monday
MANUALS (2)
This item replaces: FS-8-50
Certification Necessary
–
FlashShield is to be installed only by a licensed plumber/HVAC installer that has successfully completed the Gastite/FlashShield certification test.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
ASTM A240 Type 304 SS (Tubing) , UV Resistant Semi Conductive Polymer (Jacket)
1/2"
50' Length
-40°F to 160°F
Coil
Description
–
FlashShield+™ System Corrugated Stainless Steel Tubing (CSST)
Application
FlashShield+™ Corrugated Stainless Steel Tubing (CSST) supplies natural gas or LP gas to appliances.
Materials / Specification
Application
FlashShield+™ Corrugated Stainless Steel Tubing (CSST) supplies natural gas or LP gas to appliances.
Materials / Specification
- Tubing: ASTM A240 Type 304 321 Stainless Steel.
- Jacket: Electrically insulative and UV resistant polymer, complying with requirements of ASTM E84 and CAN/ULC-S102.2 25/50.
- Protective jacket system complies with ICC-ES PMG LC1027.
- Electrically insualtive polymer cover.
- Metallically shielded CSST.
- Arc-Trap™ feature of XR3 fitting delivers energy safely to ground.
- Metal shield layer dissiates and conducts electricity.
- No manufacturer required bonding.
- Flexibility means quick and easy installations. FlashShield+ installs 30-70% faster than traditional piping methods.
- Pre-marked by the foot, there's no measuring, rigid pipe cutting or threading. This means less waste and fewer fittings.
- 75% fewer fittings in the average installation means a safer system, less leak potential and reduced callbacks.
- FlashShield+ CSST is lightweight - 250 feet of 1/2 inch CSST weighs approximately 50 lbs and can be easily transported and handled on the job.
- CSA Certificate 1009875
- ICC-ES Report No. PMG 1066 and PMG 1155
- IAPMO: File No. C-3250 and Report No. 0239
Specs
–
| Material: | ASTM A240 Type 304 SS (Tubing) UV Resistant Semi Conductive Polymer (Jacket) |
|---|---|
| Length (Feet): | 50' |
| ID: | 1/2" |
| Temperature Range (F): | -40°F to 160°F |
| Shape: | Coil |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.84 out of 37 reviews
95% would recommend this product
5 star
95%
4 star
0%
3 star
3%
2 star
0%
1 star
3%
Customer Images
Most Liked Positive Review
great product
this stuff works good. BUT, even though the manufacturer states that no bonding is required, You must bond this as per international gas code in every state. You still have to run a #6 bonding wire over to electrical panel or if there is a lighting bonding rod coming out of ground. Those who are installing this and not properly bonding it should not be installing it.. any csst as per gas code in every state has to be bonded, just because the manufacturer states that it does not require bonding doesn't mean nothing, gas codes are put inforce for a reason. This flashshield works great. But needs to be bonded.. I am old school and still use blk pipe with manual threaded ( ridgid threader) but i have used all the fkexable gas lines, this stuff is the best, but i can not stress to you enough , PLEASE bond it properly, lives are at risk if you dont..
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
CSST that is hard to work with.
This is the first time I have worked with an ArcShield type product and It is much harder than the normal CSST. Hard to get the outer jacket off. Maybe with the mfg tools it would be better and they are not that expensive. In my case, next time I would just run the required ground wire.
Showing 1-10 of 37 reviews
No very good
The brass fittings are weak and cheaply made, being one of the most expensive products you'd think you wouldn't have fittings warping anytime you crank down on them a little bit.
bob
Florence sc
2 months ago
Was this review helpful to you?
I would buy again
Fast delivery
SteveZ
NY
5 months ago
Verified Buyer
Was this review helpful to you?
Product worked without any issues and was quick to install
It only needed a short run, and the product arrived coiled and boxed neatly. It was quick to install (as always with CSST). The factory cut ends were very clean and probably could have connected directly to the terminators, but I made my own just to be sure. Gastite makes a fantastic product line. There have been no problems with the system and no leaks (if you follow torque guidelines!). Don't forget to properly bond the system to the site's primary ground.
SupplyHouse's stock selection is fantastic, and the shipping and returns process is easy. Having dealt with other online suppliers, I can attest that they are, in my opinion, the best online trade suppliers.
Andrew
White Salmon, WA
1 years ago
Verified Buyer
Was this review helpful to you?
Propane Co. was delighted!
On the site survey, propane co requested this style of pipe and was happy and very satisfied to install!
Chuck
Mechanicsburg PA
1 years ago
Verified Buyer
Was this review helpful to you?
CSST that is hard to work with.
This is the first time I have worked with an ArcShield type product and It is much harder than the normal CSST. Hard to get the outer jacket off. Maybe with the mfg tools it would be better and they are not that expensive. In my case, next time I would just run the required ground wire.
Doug
Richmond VA
2 years ago
Verified Buyer
Was this review helpful to you?
Definitely a great company to deal with
Good price and fast shipping
Del
Pennsylvania
2 years ago
Verified Buyer
Was this review helpful to you?
Yes
Gas lines for whole house generator. Makes for nice installation.
Sparky
Florida
2 years ago
Verified Buyer
Was this review helpful to you?
I would absolutely buy this product again.
Propane delivery to Second Stage Regulators.
Dano
Roanoke, VA
2 years ago
Verified Buyer
Was this review helpful to you?
Yes
Great product, great packaging and fast shipping
Nigel
salem, or
2 years ago
Verified Buyer
Was this review helpful to you?
Awesome product
Gas tight products are expensive , but saves so much labor time cutting and threading pipe .
Dukeoffluke62
Cape May NJ
2 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Do you sell the Flashtight+ product, or only the original Flashtight?
Asked by Peter the Plumber 6 years ago
Add your answer
Verified Reply- Supplyhouse.com TeamNo unfortunately we do not.
Was this review helpful to you?
Q: can this pipe be burried in the ground?
Asked by Mushtaq 7 years ago
Add your answer
Verified Reply- JonNo, you would need to use yellow polyethylene tubing for underground use.
Was this review helpful to you?
Verified Reply- SupplyHouse StaffNo, you would want the yellow PE gas pipe.
Was this review helpful to you?
Verified Reply- DanNo, it cannot.
Was this review helpful to you?
- Jeff
I think this is like other csst types of gas pipes . i normally dont use this for ug but have seen these types of gas piping in a conduit and sealed from the elements . so i think you can but poly ug or direct burial coated copper and a two stage gas delivery system is much cheaper for a UG application but every job you need to wieght the distance s etc.
Was this review helpful to you?
