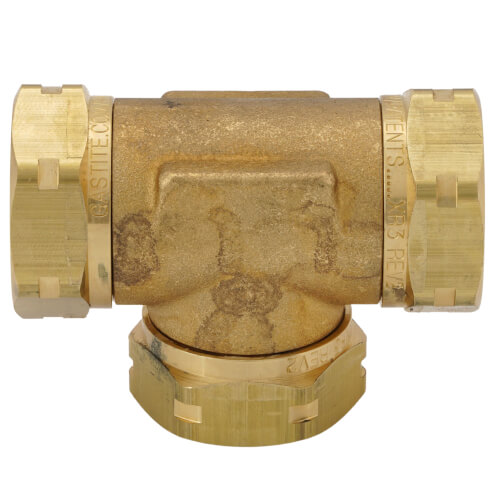

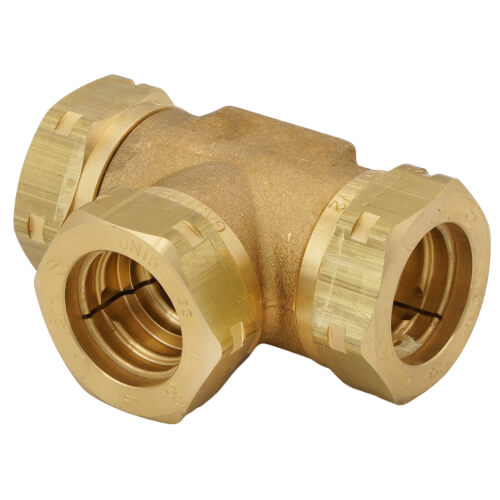

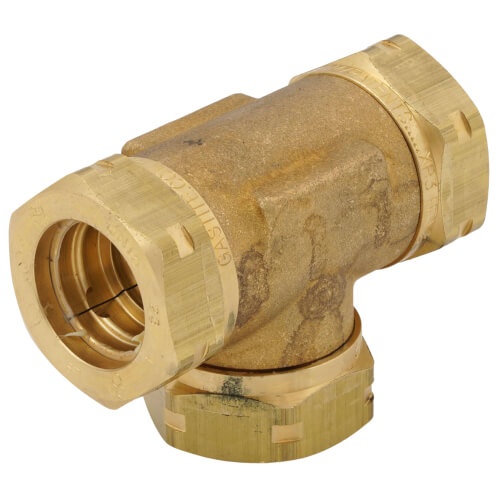

1/2" Run x 1/2" Run x 1/2" Tee - Tee Fitting

Description:
FlashShield™ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST" and listed with CSA®, ICC and IAPMO. The FlashShield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing. The Jacket-LockTM and Metal locking features provide steel tubing protection and continuous conductivity

Applications:
XR3 fittings are designed with a patened feature that contours the metal shield. This creates electrical continuity throughout the system. The XR3 fitting requires minimal torque for easy fitting installation. With no o-rings or gaskets, the reusable brass components provide a reliable metal-to-metal seat.Termination Fittings create a fixed point "stub-out" on a wall or floor surface.

Features:

• Metal lock for enhanced continuity.
• Tool-less flare design; no special tools are required.
• Metal-to-metal seal, with no split rings, O-rings or gaskets.
• Self-guiding assembly to ensure a perfectly even flare.
• Exclusive, patented Jacket-Lock™ fitting eliminates exposed stainless steel beyond the nut.
• All components are fully reuseable.

Listings:

• CSA Certificate 2728525
• ICC-ES Report No. PMG 1066 and PMG 1155
• IAPMO: File No. C-3250 and Report No. 0239

Technical Data:

• Max. Approved Operating Pressure 25 psi
• Operating Temperature Range -40°F to 160°F
• Fitting Material CA360
