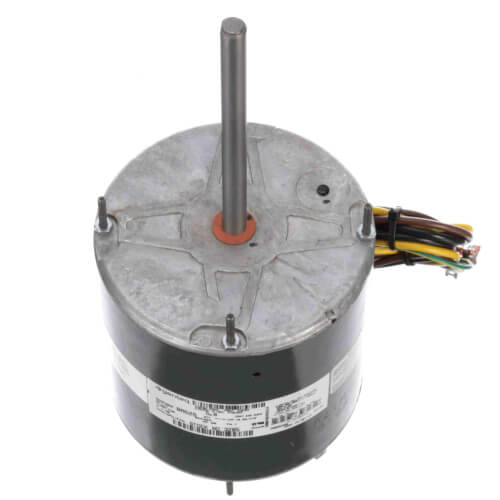

Main product image of 5-5/8" PSC Reversible Condensor Fan Motor, 1/3 HP, 825 RPM (208-230V)
Magnifying glass
Hover image to zoom

5-5/8" PSC Reversible Condensor Fan Motor, 1/3 HP, 825 RPM (208-230V)

Brand:
Genteq Motors
SKU:
3205
Rating:
(0)
Q&A:
(0)
5-5/8" PSC Reversible Condensor Fan Motor, 1/3 HP, 825 RPM (208-230V)
Magnifying glass
Hover image to zoom
$228.47 each
In Stock
In Stock
Get 12 Fri, Jun 12
Order by today, receive Friday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
208/230V
Product Highlight: RPM
825 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/3 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
1.9 Amps

Description

–
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with "belly band" or extended clamp screw mounting.

Features:
  • Permanent split capacitor
  • Standard efficiency designs
  • Sleeve or ball bearings
  • Designed for 370 Volt capacitor, not included
  • Mounting holes in shell for capacitor bracket
  • Water slinger on shaft
  • 26 inch motor leads
  • Single phase
  • 48 Frame

Specs

–
Motor:

Permanent Split Capacitor

RPM:

825

Type:

Permanent Split Capacitor

Horse Power:

1/3

Voltage:

208/230V

Duty:

Continuous Air Over

Phase:

1

Mount:

Extended Studs

Amperage:

1.9

Bearings:

Ball

Rotation:

Reversible

Poles:

8

Speeds:

1

Enclosure Type:

Totally Enclosed Air Over (TEAO)

Insulation Class:

B

Length (Inches):

12-3/8"

Overload Protection:

Thermally

Diameter (Inches):

5-5/8"

Frame:

48

Max Ambient Temp (°F):

104°F

Motor Orientation:

Any

Approvals:

CSA

UL
