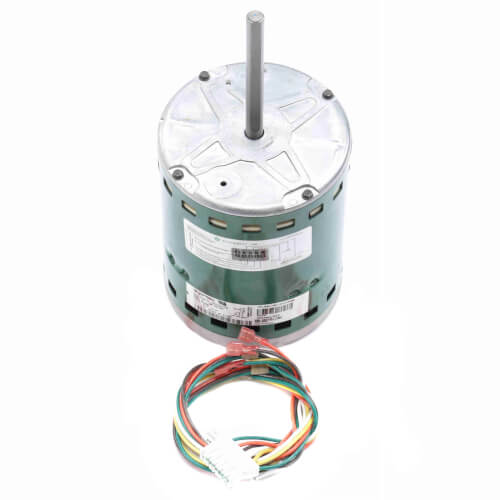

Evergreen ECM Replacement Blower Motor, 1 HP (115V)
Hover image to zoom

Evergreen ECM Replacement Blower Motor, 1 HP (115V)

SKU:
6110E
Rating:
(8)
Q&A:
(0)
Evergreen ECM Replacement Blower Motor, 1 HP (115V)
Hover image to zoom
$493.81 each
Backorder
Backorder
Get it Tue, Mar 19 - Tue, Mar 26
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
115V
RPM icon
1075 RPM
Rotation icon
Reversible
Horse Power icon
1 HP
Mount icon
Round
Amperage icon
10.9 Amps

Description

Benefits:
  • Standard ECM Replacement (Does not replace premium ECM constant airflow products such as Eon, 3.0, 2.3, and 2.5)
  • Maintains ECM-level Efficiency up to 80%
  • Soft Start and Off Ramp for quiet operation
  • Alternate use for Commercial Building Series VAV Box and Packaged Heat Pump Retrofit/Upgrade Motor for a PSC system (Refer to Evergreeen EM Instruction Manual)
  • Encapsulated Electronics
  • 4kV Surge Protection
  • Electronic Overload Protection

    Specifications:
    • Multi-speed, constant torque, brushless DC motor
    • Available in 115V or 208-230VAC single-phase input, 50/60Hz
    • Designed to replace direct-drive blower motors in residential and light commercial indoor furnaces, air handlers, and package systems that were designed with a standard ECM motor, such as an X13 or equivalent competitor model.
    • Available in 1/3, 1/2, 3/4 and 1HP ratings
    • Automatically determines motor direction using Genteq’s Rotation Sensing Technology.
    • 5 discrete speeds using 24VAC (3 using 18VDC) Low voltage signal harness provided with the motor. Operating speed range of 600-1200 rpm
    • NEMA 48-frame (5.6 inch diameter) Belly Band Mount with 5-inch long 1/2" diameter shaft.
    • UL and CSA recognized component.

Specs

Horse Power:

1

Type:

ECM

Voltage:

115V

Phase:

1

Duty:

Continuous Air Over

Rotation:

Reversible

RPM:

1075

Mount:

Round

Bearings:

Ball

Amperage:

10.9

Speeds:

5

Enclosure Type:

Open Air Over

Poles:

12

Overload Protection:

None

Insulation Class:

B

Frame:

48

Max Ambient Temp (°F):

104°F

Motor Orientation:

Horizontal

Approvals:

UL
