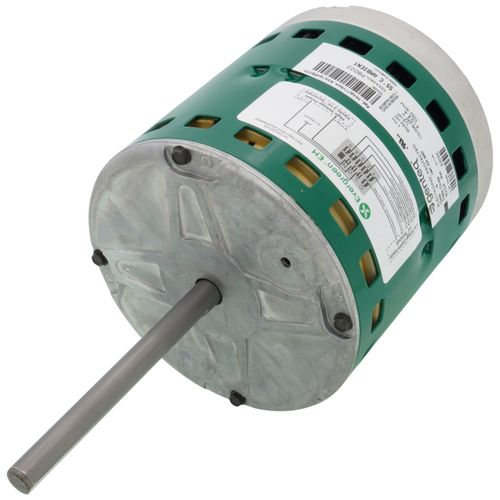

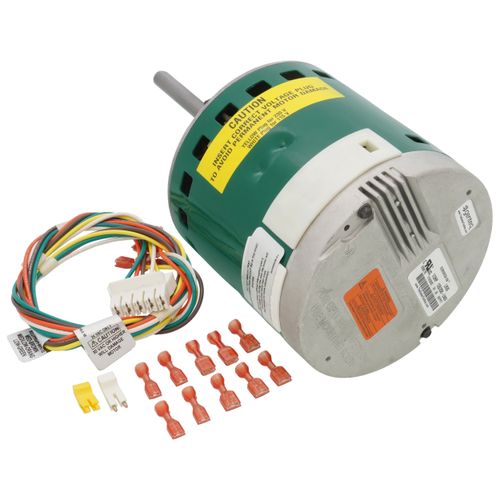

Evergreen EM Replacement Fan and Blower Motor, 1/3 HP (115/208-230V, 1050 RPM, CCW/CW)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$322.39 each
In Stock
Get 113 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (2)
This item replaces: 6103E, 3405, 6203E
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208-230/115V
1050 RPM
Reversible
1/3 HP
Round
4.1 Amps
Description
–
Genteq Evergreen EM Fan and Blower Motor, 1/3 hp, 1 ph, 60 hz, 115/208-230V, 1050 RPM, 1 Speed, 48 Frame, OPAO - 6203x
Features:
- Evergreen EM - Dual Voltage Constant Torque ECM Replacement Blower Motor
- Pre-Programmed at the factor * Ready to use out of the box * Increase first time completion * Rotation sensing technology
- 5.6" Diameter - 48 Frame, Electronically Commutated (ECM), Electronically Protected
- Up to five constant torque settings controlled by 24 VAC inputs
- Fully variable (PWM compatible) from 600-1100 RPM
- Open Air Over, Class B Insulation, 55°C Ambient
- Ball Bearing
- Shaft: Single, 1/2" diameter, 5" length, 4.5" single flat
- 42" Leads
Specifications:
- Electrical Type: Electronically Commutated Motor
- Poles:10
- Rotation: Counterclockwise/Clockwise
- Mounting: Round
- Motor Orientation: Horizontal
- Drive End Bearing: Ball
- Opp Drive End Bearing: Ball
- Frame Material: Rolled Steel
- Shaft Type: Flat
- Overall Length:10.66"
- Frame Length:4.57"
- Shaft Diameter: 0.500"
- Shaft Extension:4.92"
Specs
–
| Type: | ECM |
|---|---|
| Horse Power: | 1/3 |
| Voltage: | 208-230/115V |
| Phase: | 1 |
| Rotation: | Reversible |
| Duty: | Continuous Air Over |
| Amperage: | 4.1 |
| Bearings: | Ball |
| Mount: | Round |
| Enclosure Type: | Open Air Over |
| Poles: | 10 |
| RPM: | 1050 |
| Speeds: | 1 |
| Insulation Class: | B |
| Overload Protection: | None |
| Frame: | 48 |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
