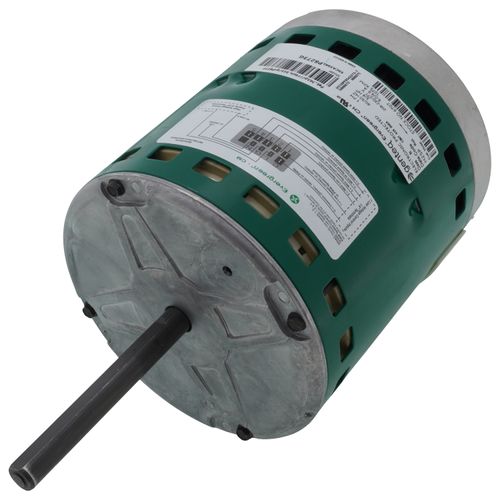

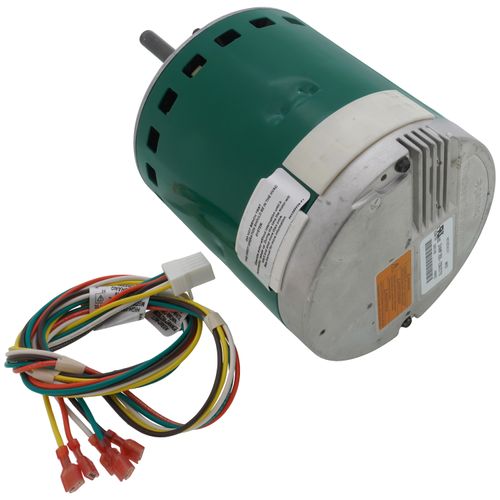

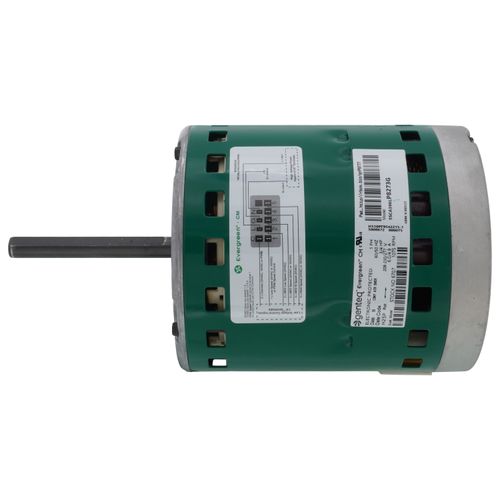

Evergreen CM Replacement Blower Motor, 3/4 HP (208-230/277V)

SKU:
6707
Rating:
(0)
Q&A:
(0)
Evergreen CM Replacement Blower Motor, 3/4 HP (208-230/277V)
Hover image to zoom

Evergreen CM Replacement Blower Motor, 3/4 HP (208-230/277V)

SKU:
6707
Rating:
(0)
Q&A:
(0)
$453.74 each
Backorder
Backorder
Get it Thu, Feb 23 - Thu, Mar 2
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
Voltage icon
277v, 208-230/277V, 208v, 230v
RPM icon
1075 RPM
Rotation icon
Reversible
Horse Power icon
3/4 HP
Mount icon
Round
Amperage icon
4.9, 6 Amps
Description
Benefits:
  • Efficiency up to 80%
  • Ready for Building Automation System Control interface using a PWM speed controller such as manufactured by Evolution Controls.
  • Air balancing using up to 5 speeds with normal 24VAC/18VDC or by using an ECM PWM Speed Controller.
  • Constant torque with better External Static Pressure
  • Control than standard PSC motors.
  • Soft Start and Off Ramp for quieter operation
  • Encapsulated Electronics
  • Improved High Static CFM performance
  • 2 Year Warranty

    Specifications:
    • Variable speed, constant torque, brushless DC motor 208-230/277VAC single-phase input, 50/60Hz
    • Designed for direct-drive blower replacement applications in commercial building systems such as
    • Series VAV boxes and Packaged Heat Pumps.
    • Available in 1/3, 1/2, 3/4 and 1HP ratings
    • Automatically determines motor direction using Genteq’s Rotation Sensing Technology.
    • 5 discrete speeds using 24VAC (3 using 18VDC)
    • Variable Speed Control using Auto-switch mode.
    • Motor switches to variable speed mode when a PWM input is detected. (Evolution Controls and Hoffman Controls make PWM speed controls for Genteq ECM Motors with manual screw adjustment, 0-10VDC, or 4-20mA inputs)
    • Operating speed range of 600-1200 rpm
    • NEMA 48-frame (5.6 inch diameter) Belly Band Mount with 4-inch long 1/2" diameter shaft.
    • UL and CSA recognized component.
Specs
Horse Power:

3/4

Voltage:

277v

208-230/277V

208v

230v

Type:

ECM

Phase:

1

Duty:

Continuous Air Over

Rotation:

Reversible

RPM:

1075

Mount:

Round

Bearings:

Ball

Amperage:

4.9

6

Poles:

12

Enclosure Type:

Open Air Over

Speeds:

5

Overload Protection:

None

Insulation Class:

B

Frame:

48

Max Ambient Temp (°F):

104°F

Motor Orientation:

Horizontal

Approvals:

CSA

UL
