Description
Benefits:
  • Efficiency up to 80%
  • Ready for Building Automation System Control interface using a PWM speed controller such as manufactured by Evolution Controls.
  • Air balancing using up to 5 speeds with normal 24VAC/18VDC or by using an ECM PWM Speed Controller.
  • Constant torque with better External Static Pressure
  • Control than standard PSC motors.
  • Soft Start and Off Ramp for quieter operation
  • Encapsulated Electronics
  • Improved High Static CFM performance
  • 2 Year Warranty

    Specifications:

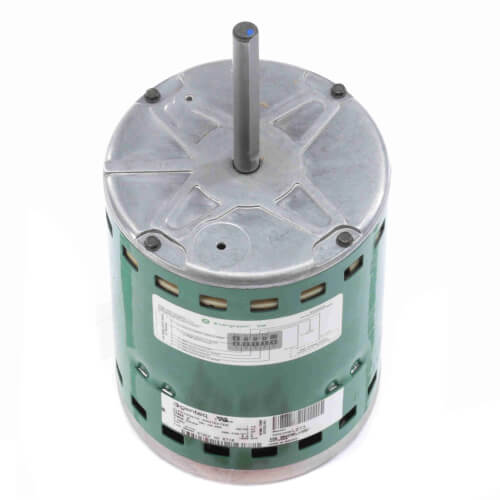

    • Variable speed, constant torque, brushless DC motor 208-230/277VAC single-phase input, 50/60Hz
    • Designed for direct-drive blower replacement applications in commercial building systems such as
    • Series VAV boxes and Packaged Heat Pumps.
    • Available in 1/3, 1/2, 3/4 and 1HP ratings
    • Automatically determines motor direction using Genteq’s Rotation Sensing Technology.
    • 5 discrete speeds using 24VAC (3 using 18VDC)
    • Variable Speed Control using Auto-switch mode.
    • Motor switches to variable speed mode when a PWM input is detected. (Evolution Controls and Hoffman Controls make PWM speed controls for Genteq ECM Motors with manual screw adjustment, 0-10VDC, or 4-20mA inputs)
    • Operating speed range of 600-1200 rpm
    • NEMA 48-frame (5.6 inch diameter) Belly Band Mount with 4-inch long 1/2" diameter shaft.
    • UL and CSA recognized component.
Hide Description
Specs
Horse Power:

1

Voltage:

208v

277v

230v

208-230/277V

Type:

ECM

Phase:

1

Rotation:

Reversible

Duty:

Continuous Air Over

RPM:

1075

Bearings:

Ball

Mount:

Round

Amperage:

7.6

6.6

Poles:

12

Enclosure Type:

Open Air Over

Speeds:

5

Overload Protection:

None

Insulation Class:

B

Frame:

48

Max Ambient Temp (°F):

104°F

Motor Orientation:

Horizontal

×
