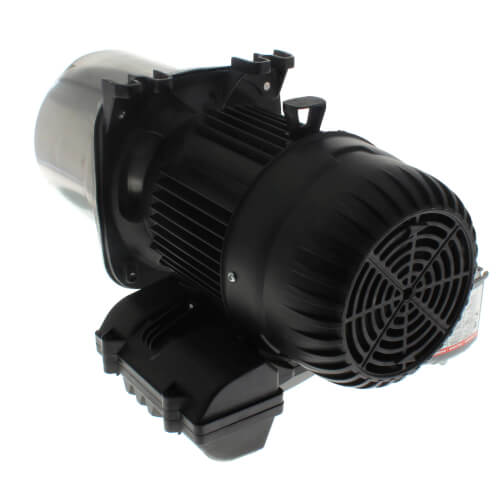

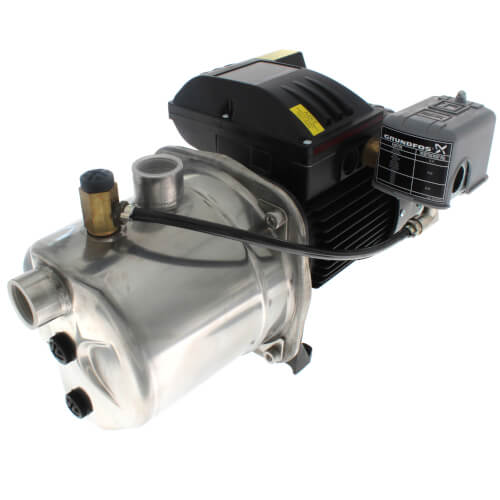

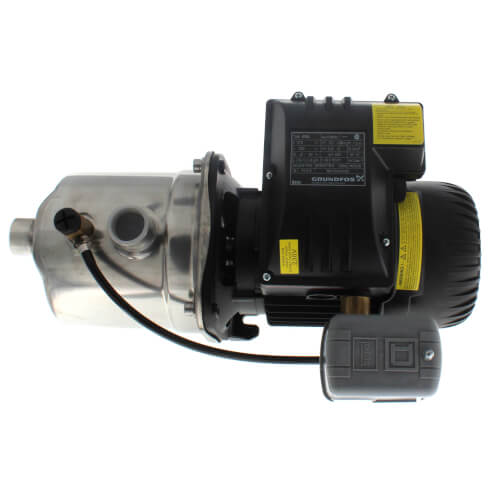

JP4-54ASI Shallow Well Jet Pump, Stainless Steel (115/230V, 3/4 HP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
97855083 has been discontinued
Discontinued October 6, 2020
This product was discontinued by the manufacturer.
Direct Replacement:
JP PS-16-07-177 1-Stage Shallow Well Jet Pump, Stainless Steel (115/230V, 3/4-1.5 HP)
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
Stainless Steel
115/230V
3/4 HP
20 MAX GPM
116 MAX PSI
Description
–
JP4-54ASI (JP07S-SS) Shallow Well Jet Pump, Stainless Steel (115/230V, 3/4 HP)
Grundfos self-priming jet pumps are durable centrifugal pumps suitable for domestic water supply systems, light agricultural and industrial water transfer applications.
All jet pump motors are totally enclosed, with a fan-cooled design for quiet operation and superior protection in harsh environments. All motors also have built-in thermal overload protection and are capacitor-run, with no switches to fail. Corrosion resistant composite components - impeller, ejector and diffuser.
NOTE: See "Pump Guide" document in Manuals tab above for pump performance curves
Grundfos self-priming jet pumps are durable centrifugal pumps suitable for domestic water supply systems, light agricultural and industrial water transfer applications.
All jet pump motors are totally enclosed, with a fan-cooled design for quiet operation and superior protection in harsh environments. All motors also have built-in thermal overload protection and are capacitor-run, with no switches to fail. Corrosion resistant composite components - impeller, ejector and diffuser.
NOTE: See "Pump Guide" document in Manuals tab above for pump performance curves
Specs
–
| Shutoff Head (ft.): | 170' |
|---|---|
| Application: | Shallow Well |
| Voltage: | 115/230V |
| Horse Power: | 3/4 |
| Max Flow (GPM): | 20 |
| Fluid Temperature Range: | 32°F - 95°F |
| Relative Humidity: | 95% |
| Max Pressure (PSI): | 116 |
| Hertz: | 60 |
| Phase: | 1 |
| Type: | Jet Pump |
| Material: | Stainless Steel |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
I would purchase this pump again if necessary.
I use this pump as a booster pump because our city water pressure is low. I could not be more pleased. It works flawlessly.
Michael
TN
7 years ago
Verified Buyer
Was this review helpful to you?
Quality pump
Good directions, easy to install, overall quality pump. A bit louder that my last one. I bought it to prevent corrosion inside plumbing system.
Bob
Cincinnati OH
8 years ago
Verified Buyer
Was this review helpful to you?
Great Product
Getting this pump completely solved all the problems we had with rust in our drinking water coming from the other pump. If you are using a pump to delivery RO processed water to your house DO NOT get a cast iron pump!!
BarbB
Sanford Florida
9 years ago
Verified Buyer
Was this review helpful to you?
From now on I'll only buy Grundfos pumps
I bought this pump to replace a pump I bought at a big box home improvement store that barely made 40 psi. This pump goes to over 100 psi easily even though I only need 60 psi. My first pump was a Grundfos that I ran for years until it was run dry for an unknown amount of time and burned up. I won't buy any other brand from now on. These things just work like they're supposed to and the way you expect them to.
Stuart
Forest Ranch, CA
9 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: What size are inlet and outlet?
Asked by Matt V 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe inlet and outlet are both 1" NPT.
