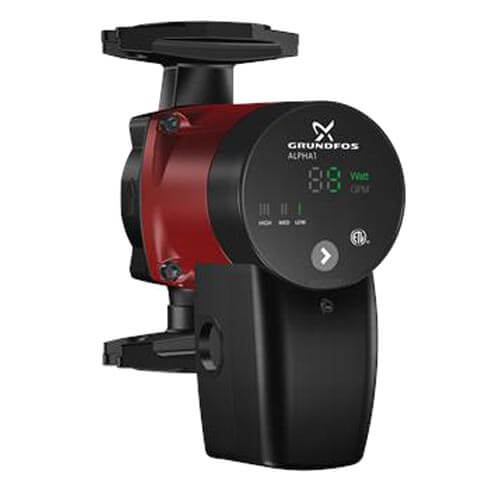

ALPHA1 Circulator Pump, 1/16 HP, 115 Volt w/ Terminal Box
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
99287256 has been discontinued
Discontinued April 6, 2023
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
UPSe 15-58F High Efficiency ECM Wet Rotor Circulator Pump with Universal Programming
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
115V
1/16 HP
21 MAX GPM
150 MAX PSI
Cast Iron
0.65 Amps
Description
–
Note: The pump does not come with Flanges. The customer is responsible for purchasing the appropriate 15/26 Flanges to pair with this.
Features:
Features:
- ALPHA1 can replace more than 30 other pump models
- Designed with trusted Grundfos ECM technology which has been used by Grundfos for more than 16 years
- ALPHA1 features the highest torque rating and most powerful start feature in its class which attempts to restart indefinitely every seven seconds in blocked rotor conditions
- ALPHA1 features an integrated check-valve and nut captures for flanges
- ALPHA1 features three-constant pressure control modes with easy to use push button settings
- Large LED display shows energy watt consumption and flow indicator in gallons per minute
- Magnetite resistant design with a stainless-steel bearing plate, robust ceramic shaft and ceramic bearing rings
- Extremely quiet 19.2 dB(A) operation – tested in one of the best European sound labs
- Available in both cast iron and stainless steel models
- ALPHA1 is compatible with either a line cord or terminal box for conduit connections
Specs
–
| Application: | Heating |
|---|---|
| Material: | Cast Iron |
| Amperage: | 0.65 |
| Voltage: | 115V |
| Horse Power: | 1/16 |
| Type: | Variable Speed |
| Temperature Range (F): | 36°F - 230°F |
| Max Head (Ft): | 19 |
| Max Flow (GPM): | 21 |
| Max Pressure (PSI): | 150 |
| Phase: | 1 |
| Hertz: | 60 |
| Frequency: | 60 Hz |
| Connection Size: | 1-1/2" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Highly Recommended
This is my go-to pump for hydronic heating and have installed dozens. Very efficient and great display (watts and flow rate) that can be helpful for troubleshooting.
MtSolar
Bozeman, MT
4 years ago
Verified Buyer
