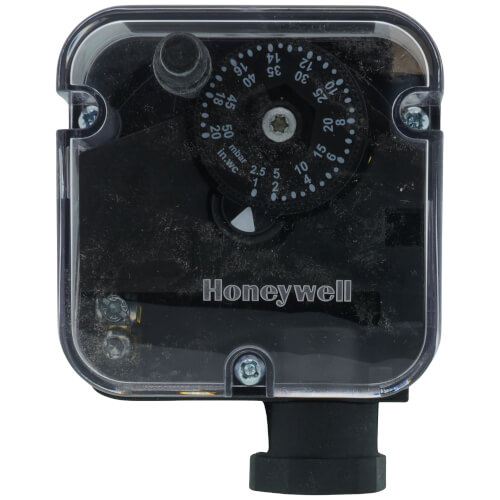

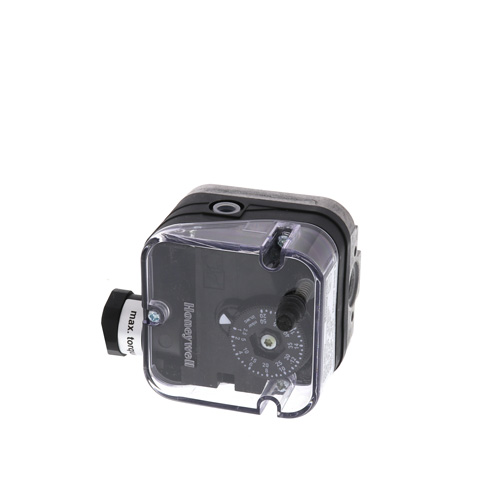

01" - 20'' W.C Manual Reset, 1/4" NPT Pressure Switch (Subtractive)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$279.38 each
In Stock
Get 20 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (3)
This item replaces: C6097B1069, C6097B1028
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Break on pressure rise
Description
–
Overview:
Pressure Switches are safety devices used in positive-pressure, negative pressure (Air, Flue gas) or differential-pressure systems to sense gas or air pressure systems.
Features:
Specifications
Pressure Switches are safety devices used in positive-pressure, negative pressure (Air, Flue gas) or differential-pressure systems to sense gas or air pressure systems.
Features:
- Pressure switch for general gas- and air application
- Diaphragm-actuated safety-limit switch
- Switch can be wired to turn on alarm
- C6097A3 models break control circuit at set point on pressure fall
- C6097B3 models break control circuit at set point on pressure rise
- Lockout with manual reset options
- Lockout models have external manual reset button
- Additional filter pad for gas/air inlet section
- Additional cover over screw terminal for safety
- Removable transparent cover protects scaleplate and adjusting knob
- Optional switch position indicator lamp available
- Protection class IP65
- Ranges: 0.4 to 4 in. wc, 3 to 20 in. wc, 12 to 60 in. wc or 40 to 200 in. wc.
- Integral 0.2mm vent limiter on all models
- FM and UL certified
Specifications
- Application: Safety devices used in positive-pressure, negative (Air & Flue Gas Only) or differential pressure systems to sense gas or air pressure changes
- 3.19 (high) x 3(wide) x 3.7 (deep)
- Mounting: 1/4 in. Rp internal thread
- Electrical Connections: Screw terminals; Line entrance: M16 x 1.5 cable gland
- Operating Temperature Range (F): -4 to +176°F
- Operating Temperature Range (C): -20 to +80°C
- Approvals, Factory Mutual: J.I. 1X5A5.AF ; FM Class 3510
- Operating Range (psi): 1 to 20 in. wc
- Differential Type: Subtractive
- Switch Operation: Manual Reset
- Switching Action: Breaks NC to COM on pressure rise
- Pipe Connection: Vent or Low pressure--1/8 in. Rp internal thread
Specs
–
| Switch Operation: | Manual Reset |
|---|---|
| Switch Action: | Break on pressure rise |
| Pressure Range: | 1 to 20 psi |
