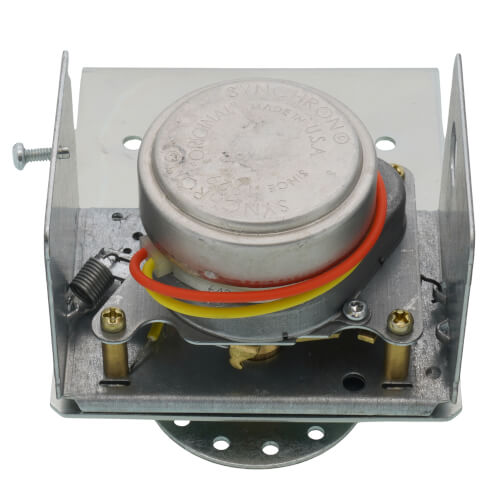

24V 2 Position Damper Actuator w/ Chain Linkage
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$167.34 each
In Stock
Get 9 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
1.9 lb-in Torque
40°F to 125°F
Foot
Description
–
Two-Position Draft Damper Actuators. Use with two-wire 24V room thermostats or other low voltage controllers to operate the draft damper on solid fuel furnaces or boilers and other similar light duty applications.
Specifications
Features
Specifications
- Control Signal: 2 Position, SPST
- Fail Safe Mode: Spring Return
- Run Time (Maximum (sec)): 20 sec
- Angle of Rotation (stroke max degrees): 45
- Motor Shafts: 1
- Shaft Shape: Round
- voltage: 24 Vac
- Frequency: 60 Hz
- External Aux. Switches Available: No
- Mounting: Foot Mounted, direct coupled
- Operating Temp: 40- 125F
- Operating Humidity Range (% RH): 5 to 95%
Features
- Low voltage, spring-return damper actuator.

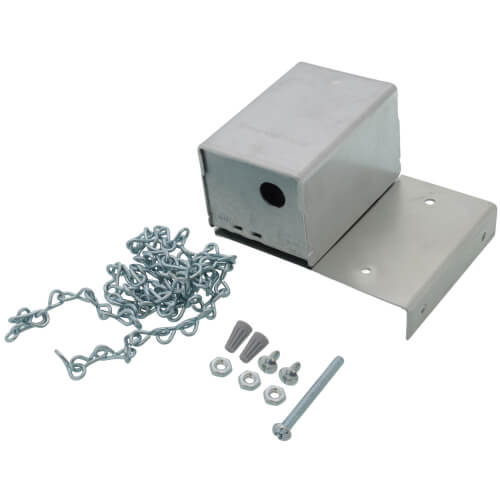

- Equipped with mounting bracket for wall, duct or direct appliance mounting to control draft damper through a chain linkage arrangement.
- Actuator wheel rotates in a clockwise direction (when facing the wheel) when energized.
Specs
–
| Actuator Type: | Two Position |
|---|---|
| Temperature Range (F): | 40°F to 125°F |
| Voltage: | 24V |
| Control Signal: | SPST, 2 Position |
| Torque: | 1.9 lb-in |
| Fail Safe Mode: | Spring Return |
| Mount: | Foot |
| Motor: | Spring Return |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.25 out of 12 reviews
91% would recommend this product
5 star
67%
4 star
17%
3 star
0%
2 star
8%
1 star
8%
Most Liked Positive Review
Perfect!
We use this to regulate the damper on our wood boiler. As we have our oil and wood furnaces linked to run individually or alone, the high temp point is really important. This old colonial is HAPPY again! Some well designed items remain that way forever, and the people at Supply House made sure we got the right version (Length of adaptor/attachment plate) Thanks Supply House. You turned our winter into Spring!!!!
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Brass gear stips
Combo Boiler came with this damper actuator. It lasted 28 years. Have bought two since original failed. they only lasted a year. Brass gear strips. first one made in USA, second and third one you guessed it ?.
Showing 1-10 of 12 reviews
I didnt receive the right part.
I ordered this and received a $2 brass fitting instead. Replacement hasnt been received and I have to go out of my way to send the fitting back!?! Very frustrating to say the least.
Once i receive the real product i will rate the product
Jake
NH
2 months ago
Verified Buyer
Was this review helpful to you?
works as it should
replaced on just like it that was 40 years old. easy install
KLB57
Vt.
1 years ago
Verified Buyer
Was this review helpful to you?
SupplyHouse.com quick/easy repair parts
Perfect replacement part for my 14 year old wood boiler. Recently ordered a pressure relief valve also. Easy online ordering, quick delivery to my home. Will use SupplyHouse.com for all of my boiler component needs.
Ev's easy boiler repair
Naples, ME
4 years ago
Verified Buyer
Was this review helpful to you?
definitely would buy again
Was exactly as described and works perfectly
Farmer tc
Central US
4 years ago
Verified Buyer
Was this review helpful to you?
Brass gear stips
Combo Boiler came with this damper actuator. It lasted 28 years. Have bought two since original failed. they only lasted a year. Brass gear strips. first one made in USA, second and third one you guessed it ?.
Ron
Pennsylvania
6 years ago
Was this review helpful to you?
quick response, just what I needed
Had just what I needed and fast delivery.
R
Michigan
7 years ago
Verified Buyer
Was this review helpful to you?
Works as expected.
The last one lasted ten years. Here's to another ten years!
D. P.
Martinsburg, wv
7 years ago
Verified Buyer
Was this review helpful to you?
Perfect!
We use this to regulate the damper on our wood boiler. As we have our oil and wood furnaces linked to run individually or alone, the high temp point is really important. This old colonial is HAPPY again! Some well designed items remain that way forever, and the people at Supply House made sure we got the right version (Length of adaptor/attachment plate) Thanks Supply House. You turned our winter into Spring!!!!
Happy wood burner....
Near Storrs, CT
10 years ago
Verified Buyer
Was this review helpful to you?
Great for Burnum boiler
used as replacement on Burnum combo boiler. works perfect.
woodman
northeast PA
11 years ago
Verified Buyer
Was this review helpful to you?
part worked fine
part came fast. replaced original part with same mounting holes and same wiring. easy to replace the original.
JD
Upstate NY.
14 years ago
