Valve Actuator with Remote Sensor (86-158F)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$168.49 each
In Stock
Get 8 Tue, Jun 16
Order by today, receive Tuesday
Temperature Range (F):
86°F to 158°F
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
V135 Series
86°F to 158°F
1-3/16" Diameter
Description
–
For use in hydronic heating systems with V135 Valves in a three-way mixing or diverting application. Controls loop temperature in radiant heating systems.
Features:
Specifications:
Features:

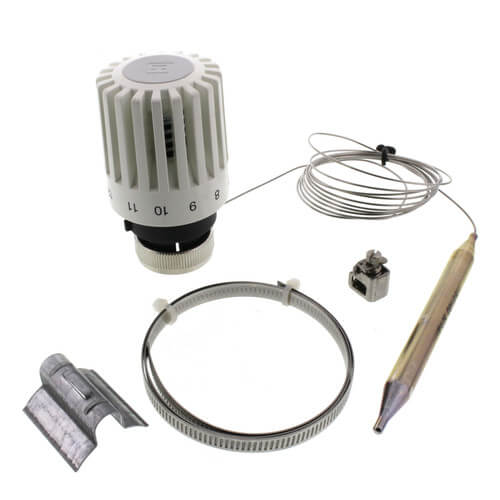

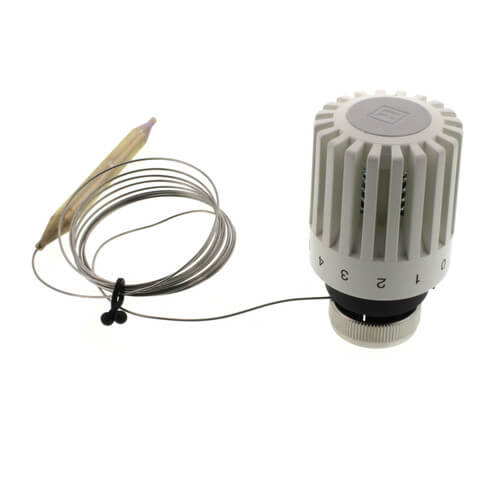

- T100R Thermostatic Actuator includes strap-on-pipe sensor.
- Knurled ring on T100R control head for easy attachment to V135.
Specifications:
- Description: Thermostatic Mixing or Diverting Valve Actuator with remote sensor(86 F to 158 F), 6ft 8 in capillary and 1 3/16 in. collar diameter
- Application Type : Thermostatic Radiator Controller for use with V135 valve body for diverting or mixing applications.
- Application: Standard Three-way mixing and diverting applications in hydronic heating systems requiring remote sensing
- Used with Valve: V135
- Sensor (integral or remote): Remote
- Setpoint (Integral or Remote): Remote
- Capillary Length: 6 ft. 8 in.
- Temperature Range: 86F to 158F
- Collar Diameter: 1-3/16 in.
Specs
–
| Application: | Accessory |
|---|---|
| Used With: | V135 Series |
| Sensor Type: | Remote |
| Setpoint: | Remote |
| Temperature Range (F): | 86°F to 158°F |
| Diameter (Inches): | 1-3/16" |
| Capillary Length: | 80" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Very accurate, Great for a radiant heat system
I set this up with the matching three way mixing valve on a radiant heating system. They replaced a 20 year old manual three way adjustment valve. Install was straight forward, however the metal band to hold the probe was poor. I made my own using a better quality clamp. Temp settings are dead on accurate.
aagalan
Massachusetts
3 years ago
Verified Buyer
Was this review helpful to you?
Excellant Mixing Valve Value
Great product for cost with sufficient CV rating for larger projects. Must be used with the Honeywell T 100 Actuator for consistent temp control. Very simple but effective unit.
Alaskawild
Fairbanks, AK.
11 years ago
Verified Buyer
Was this review helpful to you?
Delivered fast in condition as ordered.
Company delivered the products I ordered in the correct condition. Accepted return of a wrong accessory part. Perfect delivery/return process.
Nick
Miami, FL
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Will the capillary bulb be damaged by prolonged exposure to 180 deg-F temperature? I want the mixing valve to be fully open at 140 degrees as the system warms up, but normal operations will be in the 160 to 180 range. If it will be damaged, is there a compatible unit that has a higher temperature range?
Asked by Stuart 12 years ago
Add your answer
-
No it will not be damaged, the temperature range that's stated is the flow temperature mixed. These thermostatic bulbs r rated for high temp like steam and reduce the temperature according to necessity. Some of these have been in use where I service boilers for many years without fail. Sent from my iPhone
Was this review helpful to you?
Q: What are the electrical requirements? How does it work with the 3 way valve? Please show the instruction manual. Thanks.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffWe have uploaded the manual that is included with the product ( http://s3.pexsupply.com/manuals/1302268701663/52984_PROD_FILE.pdf ). These valves do not require any electricity.
Was this review helpful to you?
