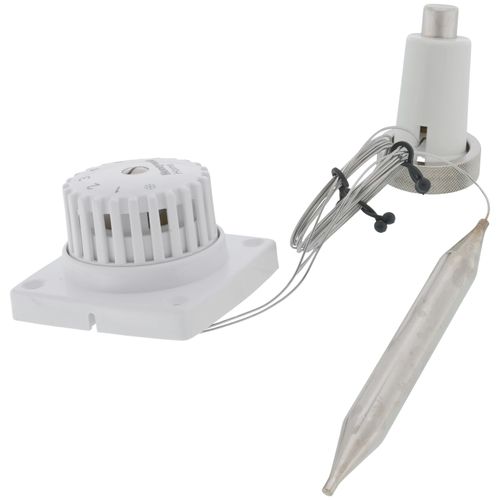

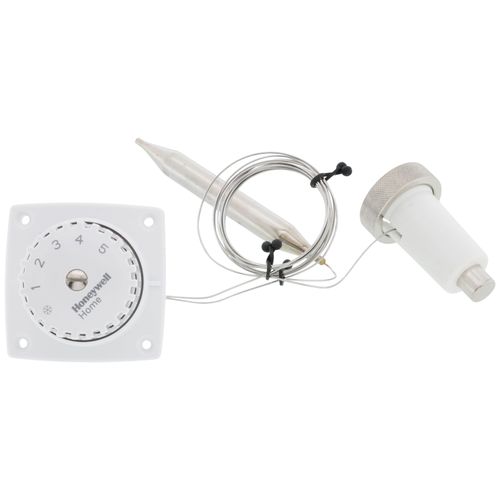

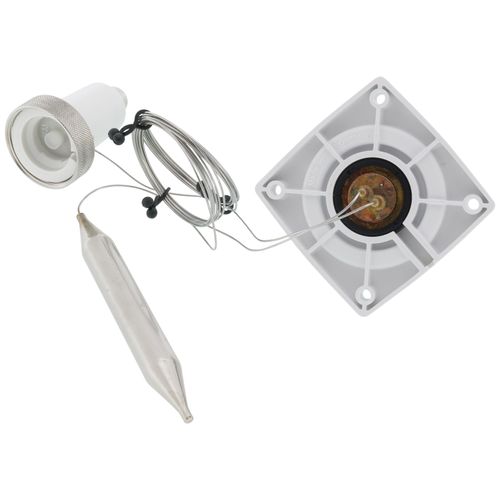

High Capacity Thermostatic Radiator Actuator - Remote Sensor

Provide precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.

• Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating.
• Designed with the higher capacity normally required by U.S.A. heating systems.
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
• Nickel-plated bronze casted body with working parts in cartridge insert for ease of service.
• Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
• Require no electrical connections.
• All working parts are replaceable using service tool (MT100C1011) while valve remains in service, in-line, under pressure.
• Valves normally open without control mounted.
• Valves may also be used with MV110 Electric Zone Valve Actuator.
• Meet ASHRAE Standard 102-1989.

• Description: High Capacity Thermostatic Radiator Actuator with sepearte remote sensor, 2- 4ft 6in. capillary and 1 19/32 in. collar diameter
• Application Type: Controller with remote setpoint and sensor normally mounted with setpoint dial mounted on outside cabinet or enclosure; sensor mounted beneath heating coils in cold air return. Double capillaries. For V110 valves.
• Application: High Capacity Thermostatic Radiator Actuator
• Used With Valve: V110
• Sensor (Integral or Remote): Remote
• Setpoint (Integral or Remote): Remote
• Capillary Length (ft): Two 4 1/2 ft.
• Capillary Length (m): Two 1.4 m
• Temperature Range (F): 48 F to 79 F
• Temperature Range (C): 9 C to 26 C
• Collar Diameter (in.): 1 19/32 in.
• Collar Diameter (mm): 40 mm
• Used With: V110
