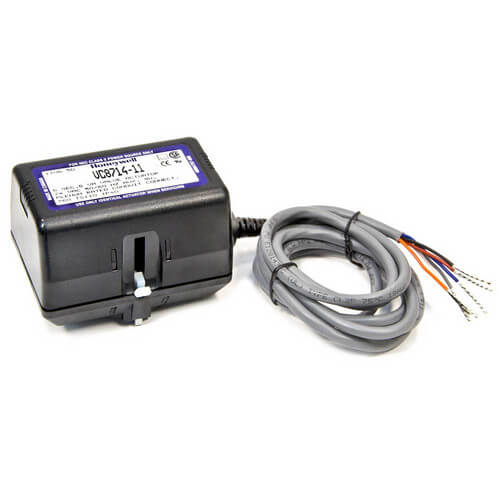

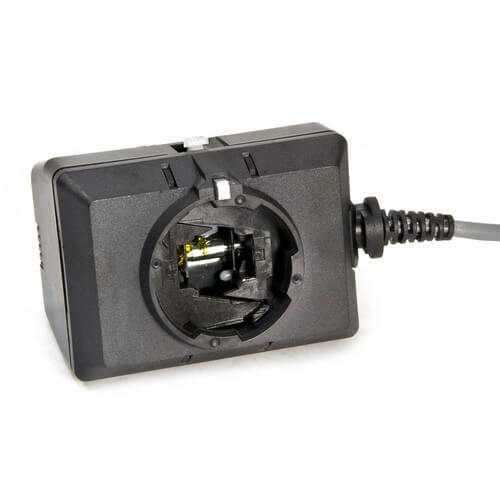

Two Position, Low Volt Actuator for VC Series Valves, w/ End Switch
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$88.57 each
In Stock
Get 23 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
Normally Closed
32°F to 150°F
Direct Coupled
Description
–
Control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT controller such as a room thermostat.
Features
Features
- Use with two-way or three-way valves.
- Minimal actuator power consumption.
- Quick-connect or one meter cable electrical connections available.
- Quick and easy replacement of moving parts.
- Actuator head installation does not require draining the system.
- On/Off models with six second nominal timing
- Use two-position actuators with 1000 Series 2 way and 6000 Series 3-way VC valve bodies only.
- All VC Series actuator-valve combinations provide 60 psi close-off.
Specs
–
| Temperature Range (F): | 32°F to 150°F |
|---|---|
| Product Type: | Actuator |
| Position: | Normally Closed |
| Control Signal: | SPST Two position |
| Actuator Type: | Two Position |
| Voltage: | 24V |
| Manual Oper.: | Lever |
| Timing: | 120 Seconds |
| Mount: | Direct Coupled |
| Fail Safe Mode: | Non-Spring Return |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Works as expected
The actuator worked as expected. I would definitely recommend supply house for any parts. They are by far the lowest priced and get you your parts the next day if they are in stock.
Tony Bee
South Blooming Grove, NY
11 years ago
Verified Buyer
Was this review helpful to you?
Just what the doctor ordered.
I use this product to control a floor heating system
in a green house. The valve opens and closes allowing water to flow through lines. It has been hard to find this part locally at a reasonable price. Your price is right and the valve is just what I needed. Thanks.
RMS
Floyd, Va.
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: i have a vc8711-11 that is bad will the replace it
Asked by ajc1998 16 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to my supplier, that is still a valid part number. You would swap out the - for zz and the part number is VC8711ZZ11. We do not have this unit on our site but you can contact a customer service representative for pricing and availability.
Was this review helpful to you?
- RMS
Yes, I replaced my vc8711 with a vc8714 and it works.
Was this review helpful to you?
