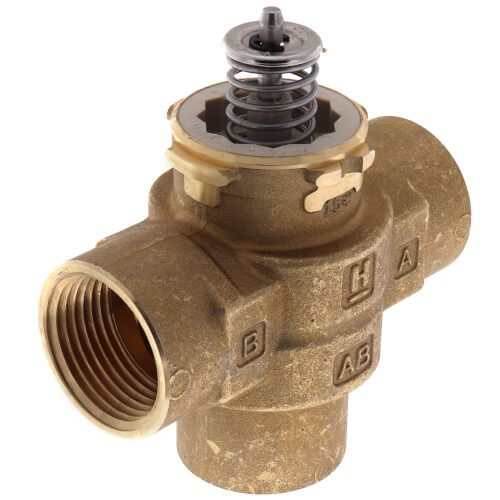

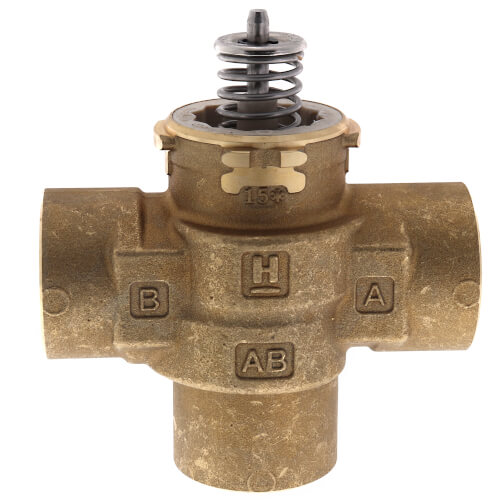

1" 3-Way Female NPT VC Valve Assembly (8.6 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$147.79 each
In Stock
Order by today, receive Monday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
8.6 Cv
Threaded Connection
300 MAX PSI
3-Way
Description
–
Three-way Cartridge Cage Valves are intended for hydronic applications in a normal indoor environment to control flow of hot/chilled water glycol solution up to 60% concentration. These valves are designed for zone control of heating/cooling systems.
Features
Features
- Quick open and linear flow characteristics available
- Mixing or diverting application
- A-AB-B body pattern
- 7000-series valves for floating and modulating non-fail safe applications
- 6000-series valves for two-position control
- High close-off rating independent of Cv
- Available with a variety of North American and international pipe fittings
- No tools required for actuator installation or removal
- Actuator removal does not require draining system
- Service is by replacement of cartridge, not valve body
- Cartridge replacement rebuilds valve to factory-new condition
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1" |
| Flow Capacity (Cv): | 8.6 |
| Connection Type: | Threaded |
| Flow type: | Linear |
| Valve Action: | Stem up to close |
| Ambient Temperature: | 32 to 150 F |
| Max Pressure (PSI): | 300 |
| Body Pattern: | 3-Way |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Q&A
2 Questions2 Questions
Q: What is meant by "Cv"?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffCv stands for flow coefficient. It represents the number of gallons that flow through a valve in one minute at a pressure drop of 1 psi across the valve at 60°F. Higher Cv values mean more flow.
Was this review helpful to you?
Q: What actuator should I use with this valve?
Asked by Fred 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve operates with VC, 2-position, on-off type actuators.
