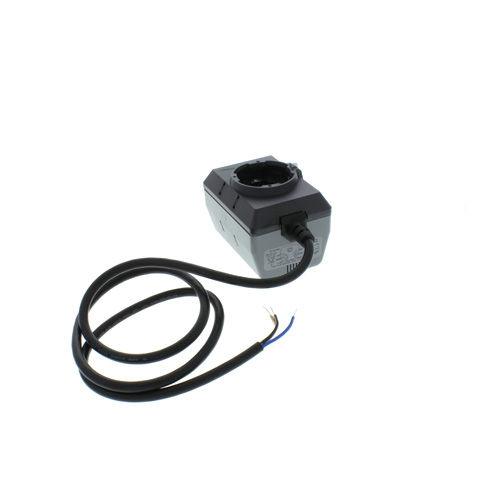

Two position, line volt actuator for VC Series valves

Used with: VC Series Valve

Control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT controller such as a room thermostat.

Features

• Use with two-way or three-way valves.
• Minimal actuator power consumption.
• Quick-connect or one meter cable electrical connections available.
• Quick and easy replacement of moving parts.
• Actuator head installation does not require draining the system.
• On/Off models with six second nominal timing
• Use two-position actuators with 1000 Series 2 way and 6000 Series 3-way VC valve bodies only.
• All VC Series actuator-valve combinations provide 60 psi close-off

Specifications

• Description: 2 wire+com for SPST controller. 120V
• Close-Off: 60 psi
• Actuator Type: Valve
• Application Type: HVAC
• Fail Safe Mode: Stays in Place
• Control Signal: 2 position
• Control Signal: SPST
• Supply Voltage: 100 to 130V
• Number of Internal Aux. Switches: 0
• Medium Temp: 203F
• Shaft Adapter Type: Self Alignment
• Manual Operation: Lever
• Stroke: .4 inches
• Maximum Differential Pressure Ratings (Close-off) (psi): 60 psi
• Mounting: Direct Coupled
• Frequency: 50, 60 Hz
• Timing, Nominal Driving @ 60 Hz (sec): 6 seconds
• Dimensions: 2.8 in. high x 3.7 in. wide x 2.7 in. deep
• Electrical Protection: Double Insulated
• Power Consumption (Driving) : 6 VA
• Electrical Connection: 39 inches
• Electrical Connection: Cable
• Cable Entry: Molded Strain Relief
• Temperature Range, Ambient (F): 32F to 150F
• Temperature Range, Storage (F): -40 to 150F
• Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
