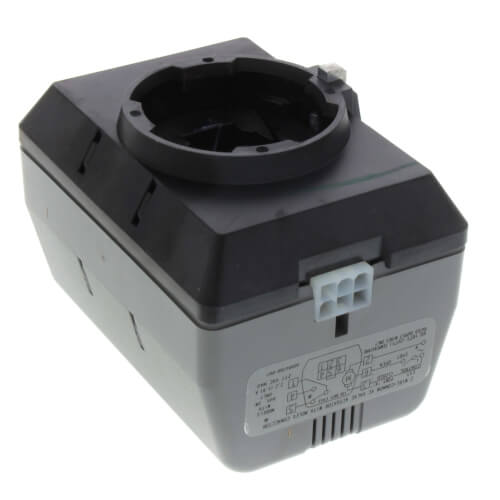

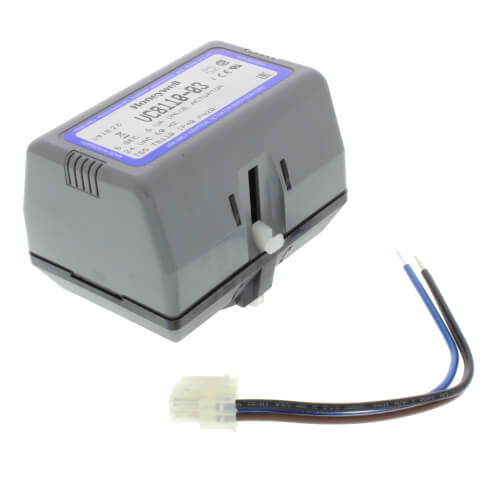

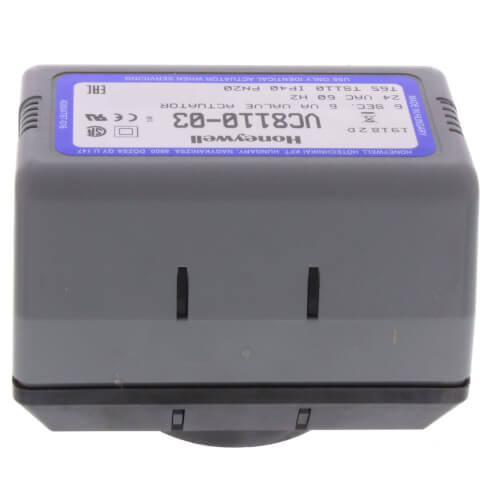

Two position, Low Volt Actuator w/ Molex Connector for VC Series Valves
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$86.31 each
In Stock
Order by today, receive Monday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Closed
Direct Coupled
Plastic
Description
–
Control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT controller such as a room thermostat.
Features:
Use with two-way or three-way valves.
Minimal actuator power consumption.
Quick-connect or one meter cable electrical connections available.
Quick and easy replacement of moving parts.
Actuator head installation does not require draining the system.
On/Off models with six second nominal timing
Use two-position actuators with 1000 Series 2 way and 6000 Series 3-way VC valve bodies only.
All VC Series actuator-valve combinations provide 60 psi close-off.
Features:
Specs
–
| Product Type: | Actuator |
|---|---|
| Actuator Type: | Two Position |
| Application: | HVAC |
| Position: | Normally Closed |
| Close Off Pressure: | 60 psi |
| Control Signal: | SPST |
| Supply Voltage: | 24 VAC |
| MEDIUM TEMPERATURE: | 203 F |
| Manual Oper.: | Lever |
| Max Differential: | 60 psi |
| Mount: | Direct Coupled |
| Frequency: | 60 Hz |
| Material: | Plastic |
| Electric Connection: | Plenum-Rated Cable |
| Ambient Temperature: | 32° to 150°F |
| Storage Temperature: | -40° to 150°F |
