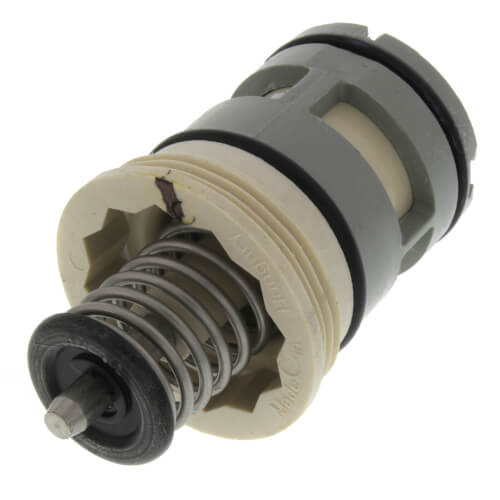

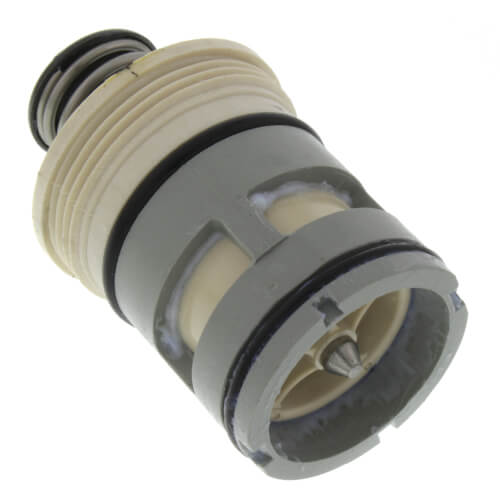

Replacement Cartridge for VC Series 2-Way Valves w/ Quick Open Flow
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$33.44 each
In Stock
Order by today, receive Monday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
On-Off Type VC Actuators
Description
–
The cartridges used in VC-Series valves determine the Cv (kv) rating and flow characteristic of a valve body. Replacing the cartridge rebuilds the valve to original factory specifications. 1000-series cartridges fit all 2-way VC bodies. 6000-series cartridges fit all 3-way VC bodies. For trouble-free operation of the product, good installation practice must include initial system flushing, chemical water treatment, and the use of a 50 micron (or finer) system side stream filter(s). Remove all filters before flushing. Do not use boiler additives, solder flux and wetted materials which are petroleum based or contain mineral oil, hydrocarbons, or ethylene glycol acetate. Compounds which can be used, with minimum 50% water dilution, are diethylene glycol, ethylene glycol, and propylene glycol (antifreeze solutions).
Features:
Features:
- Use VCZZ1XXX with two-way valves.
- Use VCZZ6XXX with three-way valves.
- Quick and easy replacement of moving parts.
- Restores valve to factory-new conditions.
- Using different cartridge changes Cv and flow characteristic of body.
- Identical cartridge can have different Cv in bodies of different sizes
Specs
–
| Valve Type: | Cartridge |
|---|---|
| Controlled Fluid: | Water with max of 60% Glycol, not suitable for steam |
| Flow Characteristic: | Quick Opening |
| Stem Travel: | 0.4" |
| Used With: | On-Off Type VC Actuators |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
Bypass valve
Always great service but I ordered the wrong part this time :-/
Plumbah
U.S.
2 years ago
Verified Buyer
Was this review helpful to you?
Great place
Good prices, fast delivery, product as described. What more could you ask for in a company. Thanks
John
Weld county, Colorado
3 years ago
Verified Buyer
Was this review helpful to you?
They make servicing the valve easy
Anyone with these two way valves know the trouble they are. These drop in cartridges are a life saver, but the little wrench is useless most of the time. We made wrenches to fit the head of the valve out of 3/16 steel and back them out with ease.
Admin
Rocky Mount, VA
3 years ago
Verified Buyer
Was this review helpful to you?
great service
Ordering is easy and products arrive fast.
Ede
Pittsboro NC
7 years ago
Verified Buyer
Was this review helpful to you?
Great Product
It is very handy to install a replacement cartridge rather than having to un-sweat the whole valve assembly just to replace it. The part even comes with the tool to do the repair. This took an hours worth of work and changed it to a 15 minute repair. The greatly increased our profit margin for our company with such a simple part.
James Purchaser
Shoreline, WA
10 years ago
Verified Buyer
Was this review helpful to you?
