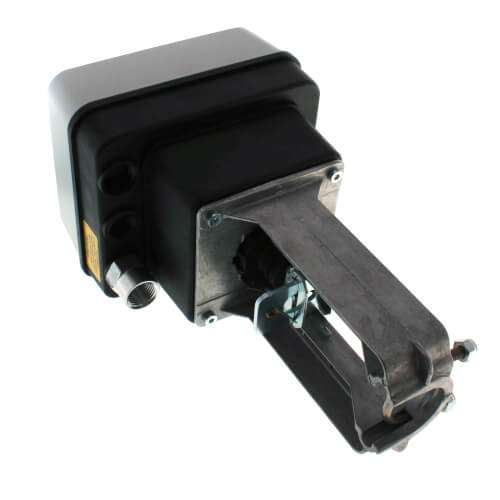

Spring Return Valve Actuator w/ 135 lbf force, Stem down on power failure
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$784.53 each
In Stock
Get 8 Thu, Jun 18
Order by today, receive Thursday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
135 lb-in Torque
Description
–
Direct Coupled Globe Valve Actuators provide floating or modulating control of chilled water, hot water, or steam, and mount directly on VGF series, V5011, and V5013 valves. These Non-Spring Return Actuators will operate 1/2 to 6 inch valves.
Features
Specifications
Features
- Easy and quick installation on valves with 1 3/8" bonnet and 3/4" stroke.
- No separate linkage required.
- Conduit connector standard.
- No adjustments required on linkage.
- Accurate valve positioning.
- Low power consumption.
- High close-off ratings.
- Force limiting end switches.
- Manual operator.
- Synchronous motor.
- Maintenance free.
- ML7420 has an internal selector plug that can be used to reverse the direction of action.
Specifications
- Direct-Coupled, Linear-Stoke, Valve Actuator
- Actuator Type: Valve
- Application Type: HVAC
- Torque/Force (lb-in., lbf : 135lb-in.
- Torque/Force (Nm, N): 600 Nm
- Control Signal: SPDT 2 position, Floating
- Supply Voltage: 24 Vac + or - 20%
- Number of Internal Auxiliary Switches: 0
- External Aux. Switches Available: Yes
- Medium Temperature: 300 F Maximum
- Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves
- Frequency: 60 Hz, 50 Hz
- Electrical Connections: Screw Terminals
- Temp Range: 14 F to 122 F
- Operating Humidity Range: 5 to 95% RH
- Includes: 1/2 in. conduit hub, 1/2 in. flexible conduit adapter
Specs
–
| Product Type: | Actuator |
|---|---|
| Actuator Type: | Two Position |
| Voltage: | 24V |
| Torque: | 135 lb-in |
| Stroke: | 3/4" |
| Fail Safe Mode: | Spring Return |
| Timing: | 90 Seconds |
| Manual Oper.: | Manual override winding |
