$338.78 each
In Stock
Get 23 Thu, Jun 18
Order by today, receive Thursday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
135 lb-in Torque
Description
–
For use with V5011/13, up to 3 in., V5045 w/ 272629A
Includes: 1/2 in. conduit hub, 1/2 in. flexible conduit adapter

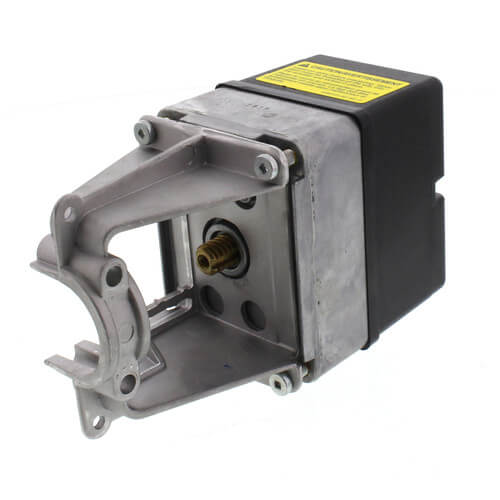

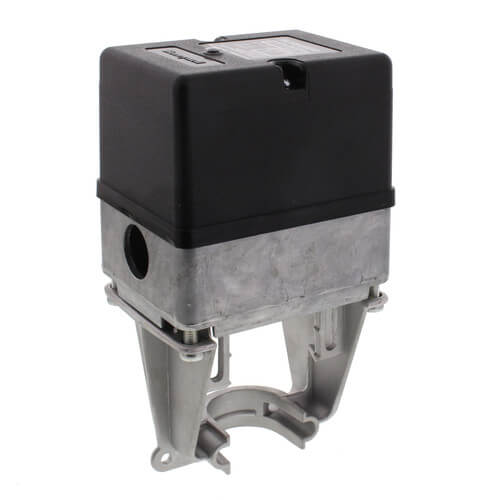

The ML6984 is a self-contained, self-adjusting, motorized linkage that mounts directly onto V5011 two-way or V5013 three-way valves and provides up to 25 mm (1") of linear travel (stem lift). For use with low voltage 3-wire SPDT Series 20 (on-off); Series 60 (floating) electromechanical (dry) contacts; or electronic (triac output) controllers (3-wire installation).
Features
Includes: 1/2 in. conduit hub, 1/2 in. flexible conduit adapter
The ML6984 is a self-contained, self-adjusting, motorized linkage that mounts directly onto V5011 two-way or V5013 three-way valves and provides up to 25 mm (1") of linear travel (stem lift). For use with low voltage 3-wire SPDT Series 20 (on-off); Series 60 (floating) electromechanical (dry) contacts; or electronic (triac output) controllers (3-wire installation).
Features
- Allows the use of one common transformer power supply for multiple actuators and controllers.
- Self-contained, motorized valve linkage.
- Linkage self-adjusts to valve stroke of 12 to 25 mm (1/2 to 1").
- Multi-pose mounting.
- Strong valve seat closing force 710 Newton (160 lbs.).
- Compact size for easy installation in confined area.
- One device for either 24 Vac or 28 Vdc power supply application.
- Electronic current sensing provides internal protection and positive full closing force.
- Field-addable position feedback/auxiliary switch module available.
- Compatible with 3-wire control systems.
- Direct-Coupled, Linear-Stoke, Valve Actuator
- Actuator Type: Valve
- Application Type: HVAC
- Control Signal: SPDT 2 position, Floating
- Number of Internal Auxiliary Switches: 0
- Switches: SPDT w/ 272630D
- External Aux. Switches Available: 272630D
- Medium Temperature: 300 F Maximum
- Feedback: Position feedback available w/ 272630D; 2-10 Vdc
- Manual Operation: None
- Stroke: 1/2 to 1 in
- Mounting: Screws onto 1/4-28 UNF threaded valve stem
- Frequency: 60 Hz, 50 Hz
- Timing: 63 at 3/4 in stroke
- Electrical Connections: Screw Terminals
- Temp Range: -40 F to 150 F
- Operating Humidity Range: 15 to 95% RH
- Electrical Protection: NEMA 3R
Specs
–
| Product Type: | Actuator |
|---|---|
| Actuator Type: | Two Position |
| Voltage: | 24V |
| Torque: | 135 lb-in |
| Timing: | 63 at 3/4" stroke |
| Stroke: | 1-1/2" |
| Fail Safe Mode: | Non-Spring Return |
| Manual Oper.: | None |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
Sure I would !
Great price. As Honeywell know how to make, I installed of them 4 pieces. Simple And it works perfectly
Palton
Nyc
5 years ago
Verified Buyer
Was this review helpful to you?
Extremely fast response from Supply House
We've used these actuators for years and will continue for the foreseeable future. Honeywell makes a good reliable product.
More importantly, Supply House was very quick to ship and minimized our down time.
Kelly
Elyria, OH
8 years ago
Verified Buyer
Was this review helpful to you?
Worked like a charm, right out of the box.
Controlling condensate back to our boilers.
John
Boston, MA
10 years ago
Verified Buyer
Was this review helpful to you?
Works Great
Works great. I only wish Honeywell would sell the pc control board seperately. Very well constructed.
mbrem
Bay City, Mi
10 years ago
Verified Buyer
Was this review helpful to you?
Reliably gets the job done.
These Honeywell actuators are quick to install and work reliably for years.
Phil the mechanic.
Midland Park, NJ
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: does it have a end switch
Asked by Bob 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffno it doesnt
Was this review helpful to you?
Q: Will this actuator work with a Taco ZVC404 and Taco SR404-EXP? Thanks!
Asked by bryan 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes those panels work w 24 volt valve actuators.
Was this review helpful to you?
