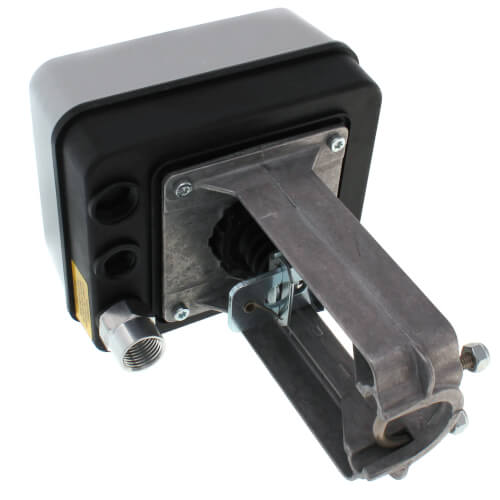

Linear-Stroke Valve Actuator 135 lbf

Used to control dampers in applications such as variable air volume (VAV) terminal units and for mounting on ball valves; suitable for use with SPDT or floating thermostats or building automation controls.

Features

• Control for air damper applications with up to 10 sq.ft. assuming 3.5 in-lb per sq.ft. of damper area, velocity independent.
• Superior A/C synchronous submotor for consistent timing and actuator longevity.
• Eliminate need for limit switches or mechanical stops by providing magnetic coupling.
• All models include manual declutch lever, and bag assembly with two minimum position setscrews.
• Mount directly on 3/8 inch or 1/2 inch square or round damper shaft.
• Selectable 45, 60, and 90 stroke in either clockwise or counterclockwise direction.

Specifications

• Direct-Coupled, Linear-Stoke, Valve Actuator
• Actuator Type: Valve
• Application Type: HVAC
• Control Signal: 2 to 10 Vdc
• Number of Internal Auxiliary Switches: 0
• Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves (3/4" or 20mm stroke)
• Frequency: 60 Hz, 50 Hz
• Manual Operation: Knob
• Timing, Nominal Driving @ 60 Hz (sec): 30 Seconds
• Temperature Range, Ambient (F):14 to 122F
