$573.75 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
405 lb-in Torque
Description
–

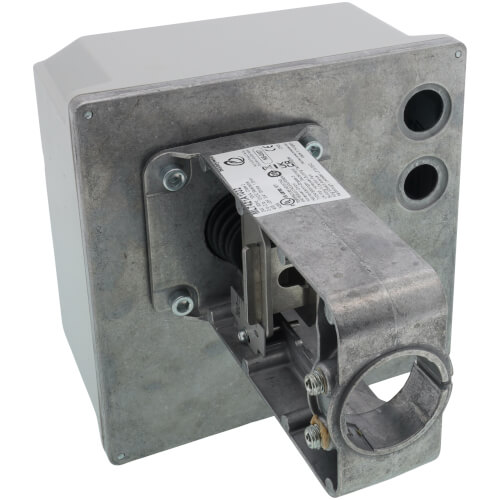

Direct Coupled Globe Valve Actuators provide floating or modulating control of chilled water, hot water, or steam, and mount directly on VGF series, V5011, and V5013 valves. These Non-Spring Return Actuators will operate 1/2 to 6 inch valves.
Features
Specifications
Features
- Easy and quick installation on valves with 1 3/8" bonnet and 3/4" stroke, or with 1 7/8" bonnet and 1 1/2" stroke.
- High force for VGF Pressure-balanced valves.
- No separate linkage required.
- Conduit connector standard.
- No adjustments required on linkage.
- Accurate valve positioning.
- Low power consumption.
- High close-off ratings.
- Force limiting end switches.
- Manual operator.
- Synchronous motor.
- Maintenance free.
Specifications
- Direct-Coupled, Linear-Stoke, Valve Actuator
- Actuator Type: Valve
- Application Type: HVAC
- Control Signal: 2 to 10 Vdc
- Number of Internal Auxiliary Switches: 0
- Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves
- Frequency: 60 Hz, 50 Hz
- Manual Operation: Knob
- Timing, Nominal Driving @ 60 Hz (sec): 95 Seconds
- Temperature Range, Ambient (F):14 to 122F
Specs
–
| Actuator Type: | Floating Proportional |
|---|---|
| Fail Safe Mode: | Non-Spring Return |
| Manual Oper.: | Knob |
| Voltage: | 24V |
| Timing: | 95 Seconds |
| Torque: | 405 lb-in |
