Product Highlights
–
24V
160 lb-in Torque
Description
–

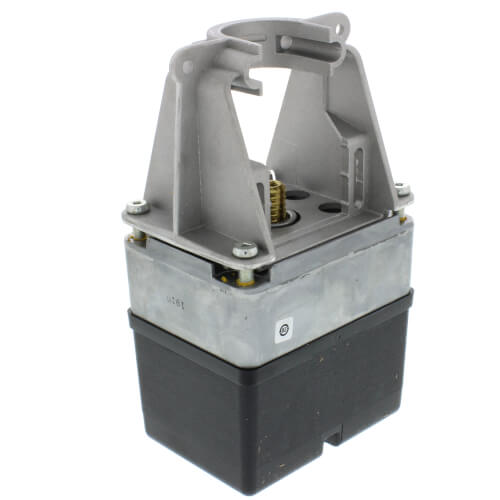

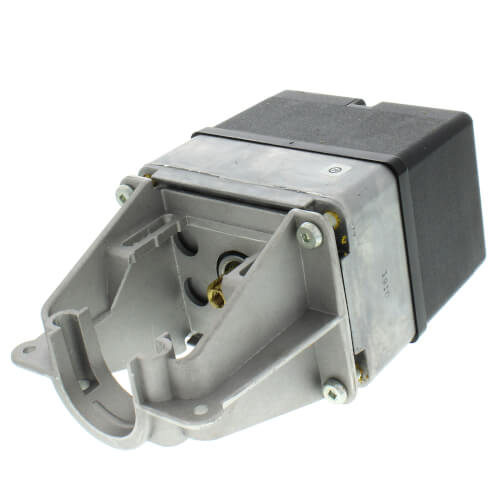

The ML7984 is a self-contained, self-adjusting, motorized linkage that mounts directly onto V5011 two-way or V5013 three-way valves and provides up to 25 mm (1") of linear stem travel. For use with Series 70 2-10Vdc, 4-20mA; Series 90 135 ohm; and Electronic (Super Mod) modulating signals controllers.
Specifications
Features
Specifications
- Direct-Coupled, Linear-Stoke, Valve Actuator
- Actuator Type: Valve
- Application Type: HVAC
- Control Signal: 2 to 10 Vdc
- Number of Internal Auxiliary Switches: 0
- Mounting: Screws onto 1/4-28 UNF threaded valve stem
- Frequency: 60 Hz, 50 Hz
- Manual Operation: Manual override winding
- Timing, Nominal Driving @ 60 Hz (sec): 63 at 3/4 in stroke
- Temperature Range, Ambient (F): 32 F to 130 F
Features
- Allows the use of one common transformer power supply for multiple actuators and controllers.
- Self-contained, motorized valve linkage.
- Linkage self-adjusts to valve stroke from 12 to 25 mm (1/2 - 1").
- Multi-pose mounting.
- Strong valve seat closing force 710 Newton (160 lbs.).
- Compact size for easy installation in confined area.
- One device for either Vac or Vdc power supply application.
- Electronic current sensing provides internal protection and positive full closing force.
- Field-addable position feedback/auxiliary switch module available.
Specs
–
| Actuator Type: | Proportional |
|---|---|
| Fail Safe Mode: | Non-Spring Return |
| Timing: | 63 at 3/4" stroke |
| Voltage: | 24V |
| Manual Oper.: | None |
| Torque: | 160 lb-in |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 8 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
I would for sure buy this product again.
The valve actuator is used for a Chilled Water Coil on an Airedale (Data Center Fan Coil). Perfect drop in replacement. Thank you for quick response.
Ecolab
Eagan, Minnesota
2 years ago
Verified Buyer
Was this review helpful to you?
Just what I needed$
Got the part in a day, good price, worked just as it should!
Me
Cincinnati
3 years ago
Verified Buyer
Was this review helpful to you?
Quick delivery
Quick delivery. OEM part and things work great.
Russ
Lodi
3 years ago
Verified Buyer
Was this review helpful to you?
Exact Fit
Exact replacement- thank you
Curly
Ohio
5 years ago
Verified Buyer
Was this review helpful to you?
Top notch actuator
Have bought and used a number of these actuators. They are the best! Very versatile and reliable. Must be installed correctly, wired correctly, and dip switches must be set properly. If they are, you can depend on them functioning flawlessly for years.
Tom
New York City
9 years ago
Verified Buyer
Was this review helpful to you?
Actuator
Use it on a hydronic system. Honeywell is the best.
none
NYC
9 years ago
Verified Buyer
Was this review helpful to you?
Great product!
I use it on Prevost H3-45 for a/c heating.
Michael
Vancouver, BC
12 years ago
Verified Buyer
Was this review helpful to you?
will to purchased this product again
We used it for our radiant heating for all the buildings in one of our facilities.
Ed
Palo Alto, Ca.
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: What temperature controller can I use with this actuator to mantain a temperature range from 65°F to 75°F in a meeting room.
Asked by Hotelier 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffalmost any 24V controller
Was this review helpful to you?
