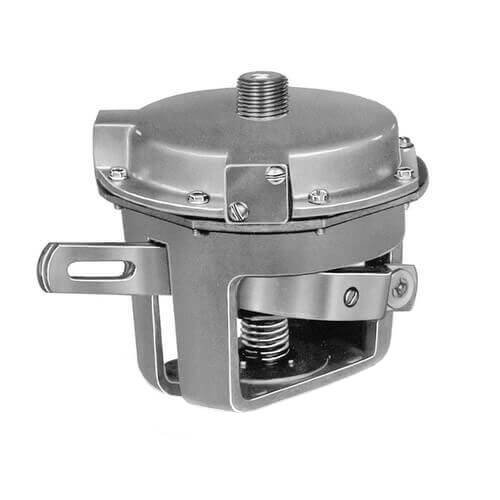

Medium Force Damper Actuator w/ Spring Return for Unit Ventilators (3 to 12 psi)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
-20°F to 160°F
Description
–
Used to control the damper on unit ventilators. Can be adapted to various unit ventilator control cycles. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell unit ventilator damper actuators.
Features
Features
- Constructed of strong zinc die castings.
- Hesitation feature available for unit ventilator cycles requiring a minimum percentage of outdoor air.
Specifications- Stroke: 2-1/8" to 2-1/2"
- Diaphragm Effective Area (sq in.): 11"
- Maximum Safe Operating Pressure (psi): 25 PSI
Specs
–
| Product Type: | Actuator |
|---|---|
| Actuator Type: | Pneumatic |
| Temperature Range (F): | -20°F to 160°F |
| Actuator Spring Range: | 3 to 12 psi |
| Fail Safe Mode: | Spring Return |
| Air Connections: | 1/8" NPT |
