$581.14 each
In Stock
Get 3 Tomorrow, Jul 3
Order by 6PM, receive Tomorrow
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
8" Diameter
25 MAX PSI
0°F - 140°F
Description
–

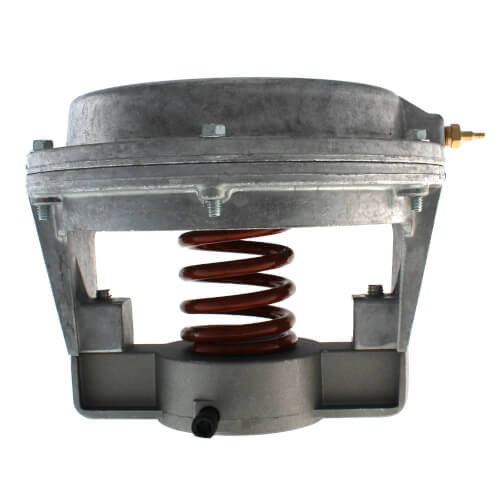

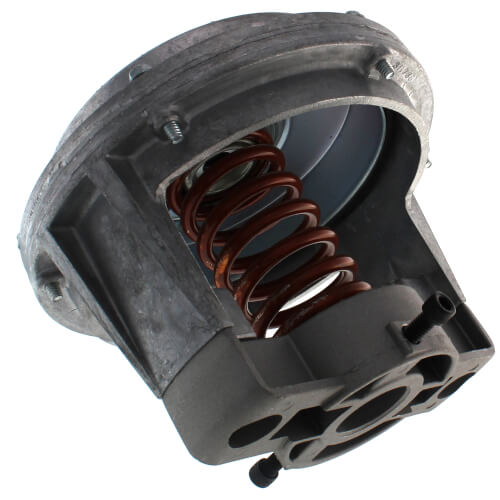

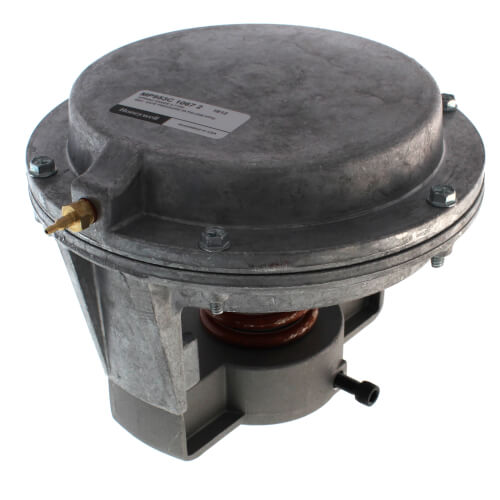

Control high pressure steam, liquids, air or noncombustible gases where positive final shutoff is not required.
Features
Specifications
Features
- Rolling diaphragm for long life and low hysteresis.
- Easily attached to valve.
- Can be installed after piping valve.
- Slide lock feature permits simple engagement to valve stem.
- Direct- or reverse-action control.
- Does not include positive positioner.
Specifications
- Actuator Type: Valve
- Actuator Force: Medium
- Action: Direct Acting
- Stroke: 3/4 in.
- Maximum Safe Operating Pressure (psi): 25 psi
- Temperature Range (F): 0 F to 140 F
- Fail Safe Mode: Spring Return
- Air Connections: Dual barbed fitting for 5/32 in. O.D. and 1/4 in. O.D. plastic tubing
- Operating Humidity Range: 5 to 95% RH
Specs
–
| Diameter (Inches): | 8" |
|---|---|
| Max Pressure (PSI): | 25 |
| Temperature Range (F): | 0°F - 140°F |
| Action: | Direct Acting |
| Actuator Spring Range: | 2 to 7 psi |
| Fail Safe Mode: | Spring Return |
| Motor: | Spring Return |
