MP953C1547 has been discontinued
Discontinued July 14, 2025
This product was discontinued by the manufacturer.
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
8" Diameter
0°F - 140°F
25 MAX PSI
Description
–

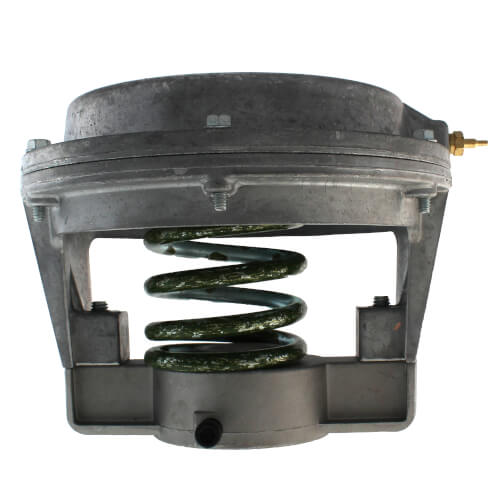

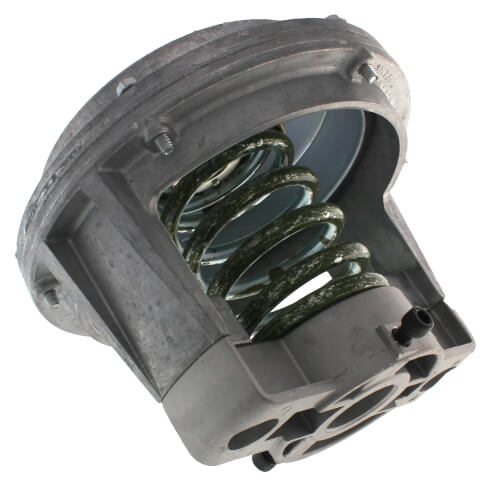

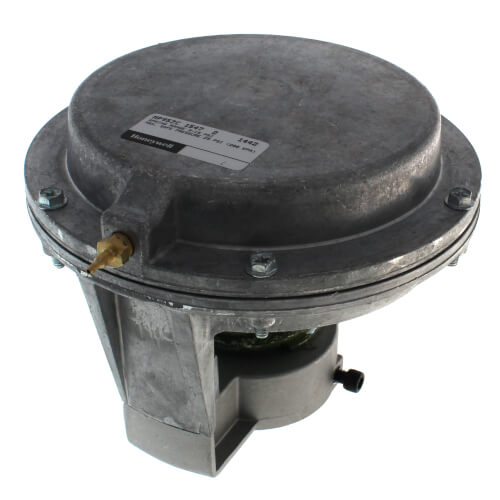

Pneumatic actuators provide proportional control of steam or hot or cold liquids in HVAC systems by operating V5011, V5013, and VGF valve assemblies. Replacement devices are available for older Honeywell actuators.
Features
Specifications
Features
- Rolling diaphragm for long life and low hysteresis.
- Easily attached to valve.
- Can be installed after piping valve.
- Slide lock feature permits simple engagement to valve stem.
- Direct- or reverse-action control.
- Does not include positive positioner.
Specifications
- Actuator Type: Valve
- Actuator Force: medium
- Action: Direct Acting
- Stroke: 1-1/2 in.
- Maximum Safe Operating Pressure (psi): 25 psi
- Temperature Range (F): 0 F to 140 F
- Fail Safe Mode: Spring Return
- Air Connections: Dual barbed fitting for 5/32 in. O.D. and 1/4 in. O.D. plastic tubing
- Operating Humidity Range: 5 to 95% RH
Specs
–
| Diameter (Inches): | 8" |
|---|---|
| Temperature Range (F): | 0°F - 140°F |
| Max Pressure (PSI): | 25 |
| Actuator Spring Range: | 3 to 15 psi |
| Action: | Direct Acting |
| Fail Safe Mode: | Spring Return |
