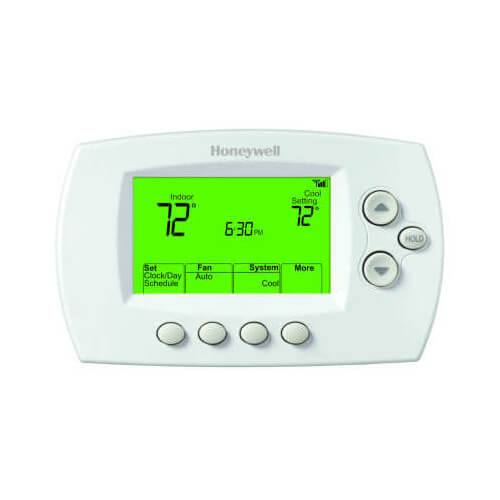

Wi-Fi FocusPRO 6000, 3H/2C, Large Display Thermostat
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
TH6320WF1005 has been discontinued
Discontinued March 5, 2019
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
T6 Pro Smart Wi-Fi Programmable Thermostat, 3H/2C, TH6320WF2003
Product Highlights
–
Programmable, 7 Day
Low voltage, 24V, 750mV
3 Heat/2 Cool
Horizontal
Hardwired
1 Amps
Description
–
Honeywell's FocusPRO 6000 digital thermostat offers the perfect blend of features, performance, energy savings and value. With the largest back-lit screen in its class, the FocusPRO 6000 prominently displays both room and set temperature.
Product SpecificationsApplication - Up to 3 Heat/2 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems
Dimensions (in.) - 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep
Dimensions (mm) - 91 mm High X 147 mm Wide X 38 mm Deep
Comments - Large display size 5.09 sq. in.
Mounting - Horizontal
Electrical Ratings - 20 to 30 Vac
Frequency - 50 Hz; 60 Hz
Stages - Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional
Operating Humidity Range (% RH) - 5 to 90% RH, non-condensing
Supply Voltage - 20 to 30 Vac
Switch Positions (System) - HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan) - AUTO-ON
Sensor Element - Thermistor
Differential Temperature (F) - ± 1 F
Differential Temperature (C) - ±0.5 C
Color - Premier White
Programmability - 7-Day Program
Power Method - Hardwired
Terminal Designations - Rc, R, W (O/B), W2 (AUX/E), Y, Y2, G, L, C, K
Display Size - Large display size 5.09 sq. in.
Changeover - Auto/Manual Selectable
Setting Temperature Range (F) - Heat: 40 F to 90 F; Cool: 50 F to 99 F
Setting Temperature Range (C) - Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
Cool Current - Y = 0.02 A to 1.0 A running, Y2 = 0.02 A to 1.0 A running
Heat Current - W2 (AUX/E) = 0.02 A to 0.5 A running; W = 0.02 A to 1.0 A running
Product Specifications
Specs
–
| Amperage: | 1 |
|---|---|
| Application: | Heat Pump Multi-Stage (Heat/Cool) |
| Stages: | 3 Heat/2 Cool |
| Programmability: | Programmable 7 Day |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Fan Control Large Display Auto Changeover Wireless |
| Power Method: | Hardwired |
| Changeover: | Auto Manual |
| Temperature Range (F): | 40°F - 99°F |
| Operating Humidity: | 5 to 90% RH, non-condensing |
| Voltage: | Low voltage 24V 750mV |
| Wattage: | 0.4 to 30 |
| Wiring: | G Y W(O/B) C W2(AUX/E) Rc L K W Y2 |
| Frequency: | 50 Hz 60 Hz |
| Color: | Premier White |
| Height: | 3-9/16" |
| Width (Inches): | 5-13/16" |
| Depth (Inches): | 1-1/2" |
| Warranty: | 5 Year |
| Humidity Control: | Yes |
