$1,639.03 each
In Stock
Get 2 Wed, Jun 24 - Fri, Jun 26
MANUALS (2)
Lift Gate
–
This product weighs 27 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3"
Cast Iron
100 Cv
Flanged x Flanged Connection
3-Way
175 MAX PSI
Description
–

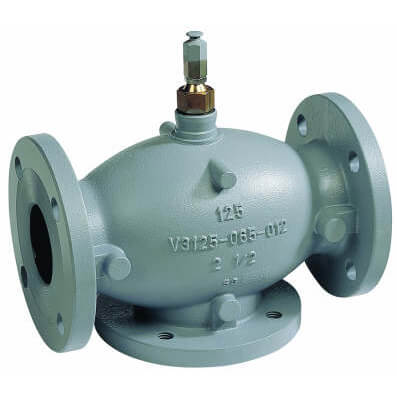

VGF Flanged Globe Valves are used for 2-position or modulating control of hot water or chilled water-glycol solutions up to 50% concentration in heating, ventilation and air conditioning (HVAC) systems. They can be operated by ML6984/7984, ML6420/6425, ML6421/7421 Electric Linear Actuators, MP953 Pneumatic Actuators, Modutrol? Motors with Q5001 valve linkage, or MN/MS Series Direct Coupled Actuators with Q5020 or Q5022 valve linkages. Three-way bodies are available in mixing or diverting style with equal percentage and linear flow characteristics, respectively. For boiler/chiller bypass applications requiring tight close-off, use VGF31/32LD diverting valves. For outdoor temperature compensation of building supply water, or modulating control of heat exchangers, use VGF31/32EM mixing valves.
Features
Features
- ANSI Class 125 and Class 250 cast iron bodies with flanged end connections.
- Face-to-face flange dimensions per ANSI/ISA S75.03 standard.
- Sizes from 2-1/2 to 6 inches.
- Stainless steel trim standard for long life span.
- Self-adjusting packing.
- Accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control.
- Universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled Modutrol Motors and MN/MS Series direct coupled actuators.
- Constant total flow throughout full plug travel (3-way diverting models).
- Not suitable for combustible gasses.
Specs
–
| Application: | Mixing |
|---|---|
| Size: | 3" |
| Material: | Cast Iron |
| Flow Capacity (Cv): | 100 |
| Connection Method: | Flanged |
| Connection Type: | Flanged x Flanged |
| Flow type: | Equal Percentage |
| Body Pattern: | 3-Way |
| Max Pressure (PSI): | 175 |
| ANSI/ASME Rating: | 125 |
| Fluid Temperature Range: | 20 to 250 F |
| Stem Travel: | 3/4" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-3 of 3 reviews
I would buy this again
Fit just right. The price was great in stock. It is up and running. Thanks!
Dr. HVACR
Norfolk VA.,
6 months ago
Verified Buyer
Was this review helpful to you?
Perfect match!
Replaced an existing valve that seized and this matched up perfectly, easy swap, great price, and fast shipping.
Chewie
Los Angeles
2 years ago
Verified Buyer
Was this review helpful to you?
I would buy again
3 way mixing valve for heating hot water loop.
Mark
Livonia, MI
10 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: hi I will like to know the dimensions over all from flange to flange and also how many holes are on it because I am trying to replace a old one and i have to make it fit on very tide spot
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve measures 13 7/8" from flange to flange. It has 4 holes on each flange. Please refer to the following manual for more information: http://s3.pexsupply.com/manuals/1301492053957/52031_PROD_FILE.pdf
