Description
Description:

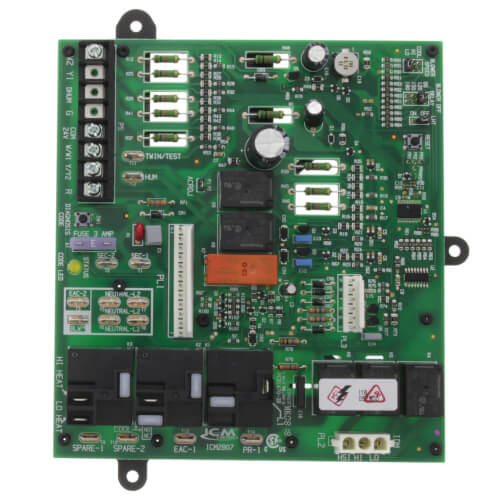

The ICM2807 is a low cost fit, form and functional replacement for the Carrier HK42FZ017 furnace control boards.

Specifications:
Ambient Temperature:
- Operating: -40°F to 176°F
- Humidity: 5% to 95% R.H. (non-condensing) @ +55°F
Voltage Range: Line (98 to 132 VAC) @ 60Hz
Ignitor: 5A @ 120 VAC
Cool Blower: 10 HP, 120 VAC
Low Heat: 5A, 1/2 HP, 120 VAC
High Heat: 10A, 1 HP, 120 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Gas Valve: 1.5A @ 30 VAC
EAC: [email protected] VAC
Humidifier: 0.5A & 24 VAC
Hide Description
Specs
Product Type:

Control Board

Operating Temp Range:

-40° to 176°F

Humidity Range:

5% to 95% Relative Humidity (Non-Condensing)

Voltage Range:

Line (98 - 132 VAC) @ 60Hz

Inducer Motor:

4A FLA-8.0 LRA @ 120 VAC

Cool Blower:

10 HP 120 VAC

Cool Blower ON Delay:

1 Second

Cool Blower OFF Delay:

1 Second

×
