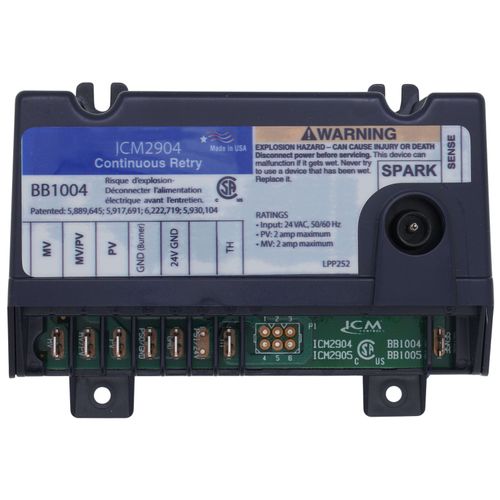

Intermittent Pilot Ignition Control (Replaces Reznor 257009)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
ICM2904 has been discontinued
Discontinued October 29, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
Intermittent Pilot Gas Ignition (Replaces Reznor 257009), ICM2904-LF
VIEW REPLACEMENT --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
Intermittent Pilot
Description
–
*Intermittent pilot gas ignition control module*For use with intermittent pilot boilers, furnaces and other heating appliances* Microprocessor-based*Remote flame sensing*Compatible with LP or natural gas*Brown out monitoring
Features
Specifications
Features
- Intermittent Pilot Gas Ignition Control Module
- For use with intermittent pilot boilers, furnaces and other heating appliances
- Microprocessor-based
- Monitors timing, trial for ignition, and flame sensing
- Remote flame sensing
- 100% lockout safety feature
- Compatible with LP or Natural Gas
- Brown out monitoring circuit
Specifications
- Control Voltage: Line 18-30VAC 50/60 Hz
- Pilot Valve: 1A @24VAC
- Main Gas Valve: 2A @24VAC
- Current Draw: 100mA maximum
- Pre-Purge Delay: 0 seconds
- Ambient Operating Temperature: -40ºF to 167ºF -40C to 75°C
- Humidity: 5%-95% R.H. (non-condensing) at +55°C
Specs
–
| Product Type: | Intermittent Pilot Gas Ignition |
|---|---|
| Control Voltage: | Line 24V (18-30 VAC) 50-60Hz |
| Anticipator Setting: | 2A plus valve load @ 24 VAC |
| Pre-Purge Time: | 0 Seconds |
| Ignition Type: | Intermittent Pilot |
| Operating Temp Range: | -40° to 167°F |
| Relative Humidity: | 5% to 95% R.H. (non condensing) |
| Replaces: | 257009 |
| OEM: | Reznor |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
You May Also Need
Product Reviews
3 out of 2 reviews
50% would recommend this product
5 star
50%
4 star
0%
3 star
0%
2 star
0%
1 star
50%
Showing 1-2 of 2 reviews
not going to try this product line again
I was not able to get control to work.
yosemite steve
mpls mn
2 years ago
Verified Buyer
Was this review helpful to you?
Perfect fit, works great!
Furnace starts and runs better than ever, installation instructions were very helpful.
Bernie
Clearfield Utah
5 years ago
Verified Buyer
Was this review helpful to you?
