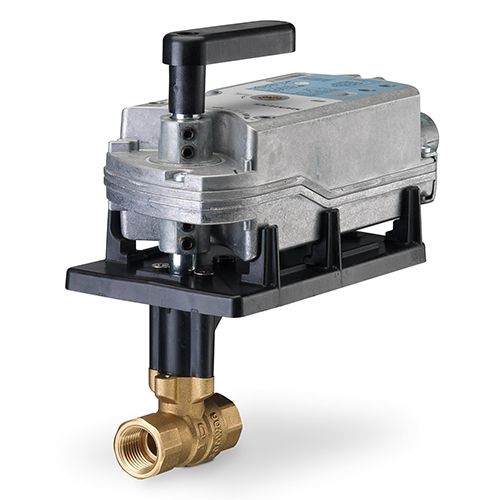

599 Series 2" NPT 2-Way Brass Valve with 24V Spring Return Normally Closed Actuator

This 599 Series 2-way ball valve with a 0-10 Vdc control, normally closed, fail safe actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2-inch valve is 63 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

Features:

• Valve Type: Two-way
• Valve Body Style: Rotary-Ball
• Port Configuration: 2-Way Normally closed
• End Connection: NPT
• Material, valve body: Brass
• Material, inside set: Ball: Chrome-plated brass , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Brass , Stem Seals: EPDM O-rings
• Medium: Water , Water with anti-freeze
• Leakage rate: ANSI Class IV
• Leakage rate, class: ANSI Class IV
• Medium temperature: 35 - 250 ºF
• Valve Actuator Type: Electronic
• Actuation Style: Rotary
• Normally Open/Normally Closed: Normally Closed
• Supply Voltage: 24 VAC/DC
• Auxiliary Switch: No
• Dimensions (W x H x D): 9.13 x 10.06 x 5.38 in
