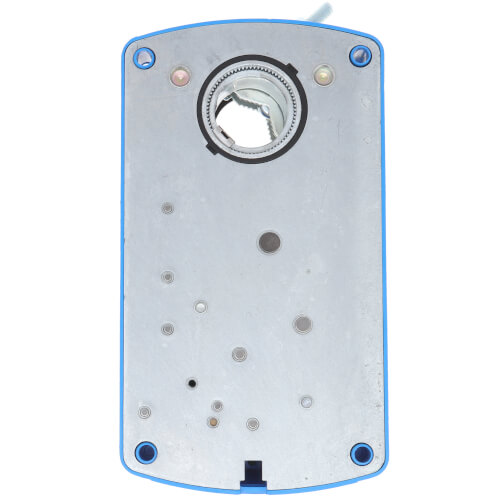

24 VAC Proportional Non-Spring Return Rotary Actuator (70 lb-in)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
M9108-GGA-2 has been discontinued
Discontinued April 5, 2026
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: M9106-GGA-2
Product Highlights
–
24 VAC
70 lb-in Torque
Description
–
24 VAC Proportional Non-Spring Return Rotary Actuator (70 lb-in))
The M9108-xGx-2 Series direct-mount electric actuators operate on 24 VAC power and are available for use with on/off, floating, or proportional controllers. These non-spring return actuators are easily installed on a Variable Air Volume (VAV) box, a damper with a round shaft up to 1/2 inch (13 mm) in diameter, or a square shaft up to 3/8 inch (10 mm).
The M9108 models have 70 lb·in (6 N·m) running torque. They have a nominal 60-second travel time for 90° of rotation at 60 Hz (72 seconds at 50 Hz) with a load-independent rotation time.
The M9108-xGx-2 Series direct-mount electric actuators operate on 24 VAC power and are available for use with on/off, floating, or proportional controllers. These non-spring return actuators are easily installed on a Variable Air Volume (VAV) box, a damper with a round shaft up to 1/2 inch (13 mm) in diameter, or a square shaft up to 3/8 inch (10 mm).
The M9108 models have 70 lb·in (6 N·m) running torque. They have a nominal 60-second travel time for 90° of rotation at 60 Hz (72 seconds at 50 Hz) with a load-independent rotation time.
Specs
–
| Product Type: | Rotary Actuator |
|---|---|
| Actuator Type: | Proportional |
| Fail Safe Mode: | Non-Spring Return |
| Torque: | 70 lb-in |
| Voltage: | 24 VAC |
