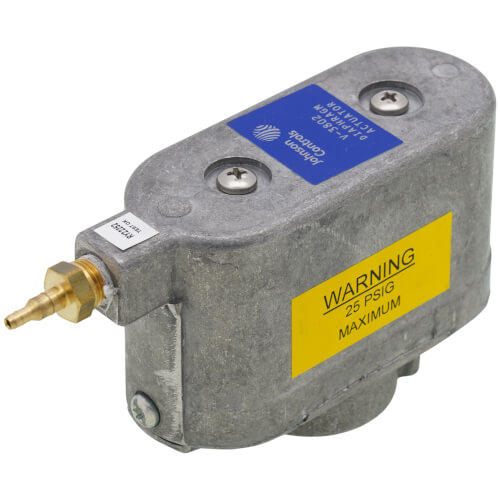

V-3802 Oval Top Pneumatic Valve Actuator
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
V-3802-1 has been discontinued
Discontinued January 23, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Description
–
The V-3802 Pneumatic Oval Top Actuator
positions steam or water valve modulating
plugs in response to a pneumatic signal from a
controller.
Features
Features
- Designed for use where mounting space is restricted
- Die cast aluminum housing and a molded, synthetic elastomer diaphragm that provides a constant effective area throughout the valve stem stroke
- Comparatively small oval enclosed actuator has sufficient force to handle most seating pressures
- Remove or reposition actuator by loosening a single set screw
- Easily field mounted to the valve bonnet with a single set screw.
Specs
–
| Actuator Type: | Pneumatic |
|---|---|
| Air Connections: | 1/8" NPT |
