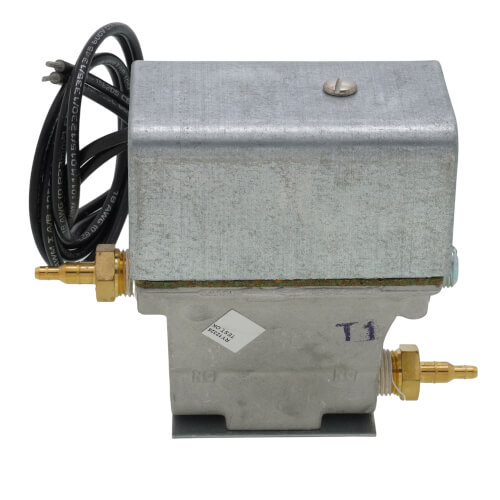

3-Way Solenoid Air Valve (220/240V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$357.53 each
In Stock
Get 4 Thu, Jul 9
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
220/240V
Description
–
V11 three-way valves are for use
in applications where the
operation of a pneumatically
operated device is dependent
upon an electrical circuit.
The valves direct supply air to the pneumatic device when the coil is energized or deenergized, depending on the supply and exhaust air connections.
Specifications:
The valves direct supply air to the pneumatic device when the coil is energized or deenergized, depending on the supply and exhaust air connections.
Specifications:
- Power: 220/240V, 50/60 Hz
- Temperature Rating: 60C Max
- Ambient Temperatures: Minimum 32° F (0° C) maximum 140° F (60° C)
- Conduit Opening: 7/8" Diameter
- Valve Body Finish: Dull Gray (iridate)
- Cover & Case Finish: Gray baked enamel
- Valve Body Material: Die cast aluminum
- Cover & Case Material: Cold rolled steel
- Maximum Pressure Rating: 30 PSIG (207 kPa)
- Operating Pressure (all three ports): 0 to 20 PSIG (0-138 kPa)
- Power Consumption: 6 Watt
- Wiring Connections: 18" wire leads
- Air Connections: 1/4" barb connections in common port and normally closed. Normally open port is 1/8" FNPT
Specs
–
| Product Type: | Air Valve |
|---|---|
| Voltage: | 220/240V |
| Power Consumption: | 6W |
| Wiring: | 18" Leads |
| Max Pressure (PSIG): | 30 |
