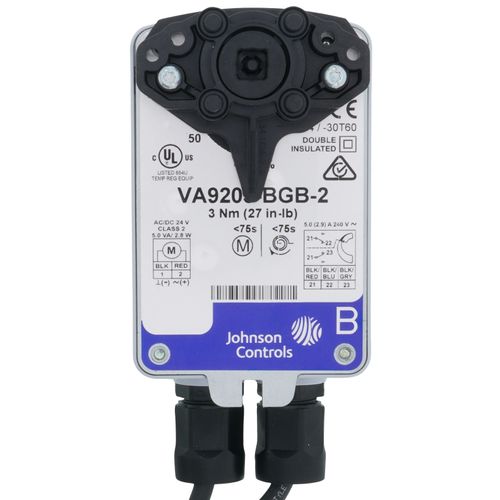

VA9203, 24V On/Off Electric Spring Return Valve Actuator, SPDT (27 lb-in)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$222.16 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
27 lb-in Torque
Description
–
The VA9203-Bxx-2 Series On/Off Electric Spring
Return Actuators are direct-mount valve actuators that
operate on AC 24 V power at 50/60 Hz, DC 24 V
power, or AC 85 to 264 V power at 50/60 Hz. These
bidirectional actuators are used for on/off control on
Johnson Controls® VG1000 Series 1/2, 3/4, and 1 in.
(DN15, DN20, and DN25) ball valves in Heating,
Ventilating, and Air Conditioning (HVAC) applications.
An integral line voltage auxiliary switch, available only
on the VA9203-xxB-2 models, indicates end-stop
position, or performs switching functions within the
selected rotation range.
Specifications:
Specifications:
- 24Vac
- 24Vdc
- Two Position
- Less than 75 second Power On run time
- 27 lb-in Torque
- 48" Appliance Cable Spring Return Direct Coupled Ball Valve Actuator
- 1 SPDT Auxiliary Switch
Specs
–
| Actuator Type: | On/Off Two Position |
|---|---|
| Torque: | 27 lb-in |
| Voltage: | 24V |
| Fail Safe Mode: | Spring Return |
| Auxiliary Switch: | SPDT |
