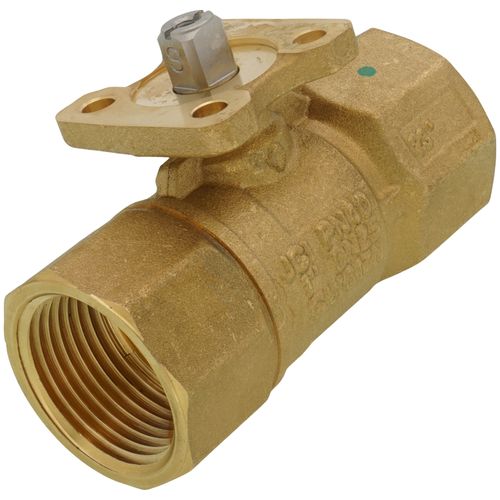

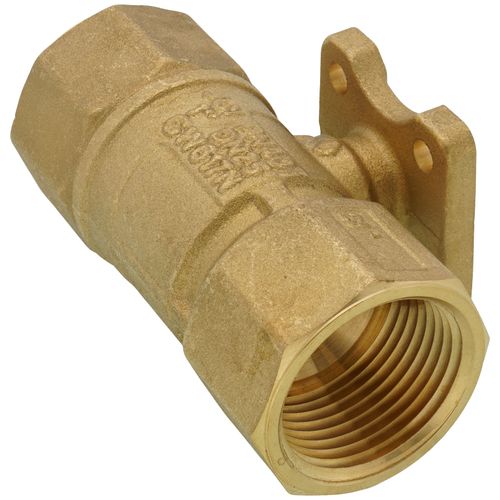

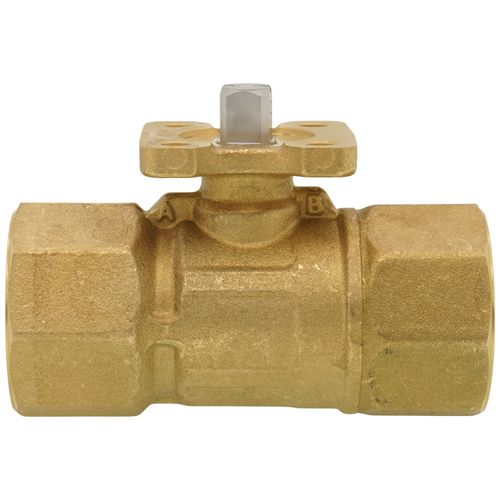

1" NPT 2-Way Stainless Steel Ball Valve (7.4 Cv)

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. Available in sizes 1/2" through 2" (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring Return and VA9203 and VA9208 Series Spring Return Electric Actuators for on/off, floating, or proportional control.

Features:

• forged brass body - provides 580 psig static pressure rating
• graphite-reinforced Polytetrafluoroethylene (PTFE) seats - include 15% graphite-reinforced ball seals, providing better wear resistance
• 500:1 rangeability - provides accurate control under all load conditions
• maintenance-free design - performs without failure in excess of 200,000 full stroke cycles in iron-oxide contaminated water
