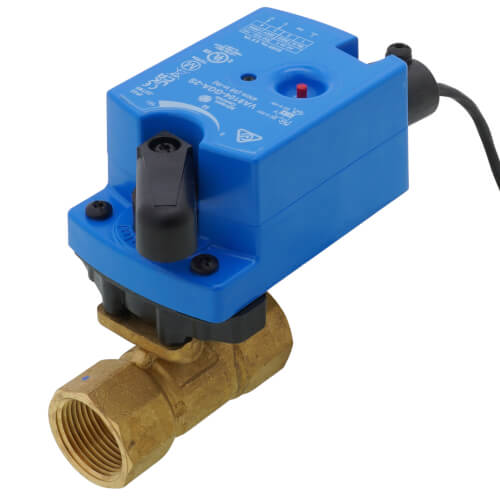

1" NPT 2-Way Stainless Steel Valve w/ VA9104 Proportional Actuator (18.7 Cv)
Hover image to zoom

1" NPT 2-Way Stainless Steel Valve w/ VA9104 Proportional Actuator (18.7 Cv)

SKU:
VG1245CP-9A4GGA
Rating:
(0)
Q&A:
(0)
1" NPT 2-Way Stainless Steel Valve w/ VA9104 Proportional Actuator (18.7 Cv)
Hover image to zoom
$215.20 each
In Stock
In Stock
Get 14 Wed, Feb 28
Fast Track Logo
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Torque icon
35 lb-in Torque
Connection Type icon
Threaded Connection
Body Pattern icon
2-Way
Flow Capacity (Cv) icon
18.7 Cv
Size icon
1"
Material icon
Stainless Steel

Description

This model is a Non Spring Return model.

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring Return and VA2202, M9206, and M9210 Series Spring Return Electric Actuators for on/off, floating, or proportional control.

Features:
  • Power Requirements: 24 VAC +25%/-20%, Class 2, SELV
  • Position Feedback: 0(2) to 10 VDC Position Feedback
  • Electrical Connections: 120 in. Plenum Cable
  • Weather Shield Options (For Field Assembly Only): M9000-341
  • 200 PSID Close Off Pressure

Specs

Fail Safe Mode:

Non-Spring Return

Actuator Type:

Proportional

0 (4) to 20 mA

w/ 500 ohm resistor

0 (2) to 10 VDC

Size:

1"

Flow Capacity (Cv):

18.7

Connection Type:

Threaded

Body Pattern:

2-Way

Material:

Stainless Steel

Fluid Temperature Range:

-22° to 212°F

Torque:

35 lb-in
