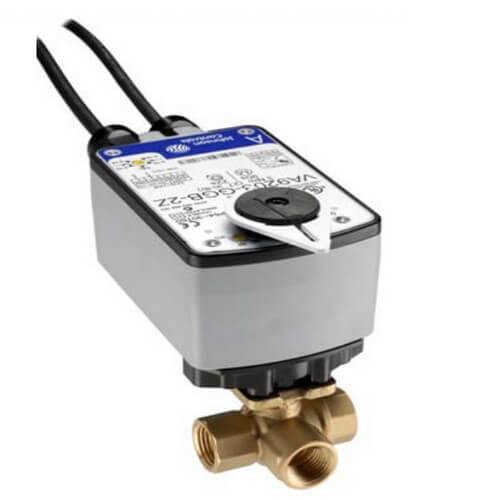

1/2" NPT 3-Way Brass Valve w/ VA9203 Proportional Actuator (1 SPDT, 1.9 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$460.44 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
27 lb-in Torque
Threaded Connection
3-Way
1.9 Cv
1/2"
Brass
Description
–
This model has a 1 SPDT Auxiliary Switch.
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring Return and VA2202, M9206, and M9210 Series Spring Return Electric Actuators for on/off, floating, or proportional control.
Features:
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring Return and VA2202, M9206, and M9210 Series Spring Return Electric Actuators for on/off, floating, or proportional control.
Features:
- Power Requirements: 24 VAC +/- 20%, VDC +/- 10%
- Auxiliary Switch: 1 SPDT, 5.0(2.9) A @ 240 V
- Position Feedback: 0(2) to 10 VDC Position Feedback
- Weather Shield Options (For Field Assembly Only): M9000-341
- Electrical Connection: 48 in. (1.2 m) 18 AWG Appliance Cable
- 200 PSID Close Off Pressure
Specs
–
| Fail Safe Mode: | Spring Return Port A Open |
|---|---|
| Actuator Type: | Proportional 0 (2) to 10 VDC w/ 500 ohm resistor 0 (4) to 20 mA |
| Size: | 1/2" |
| Flow Capacity (Cv): | 1.9 |
| Connection Type: | Threaded |
| Body Pattern: | 3-Way |
| Material: | Brass |
| Fluid Temperature Range: | 23° to 203°F |
| Torque: | 27 lb-in |
| Auxiliary Switch: | 1 SPDT |
