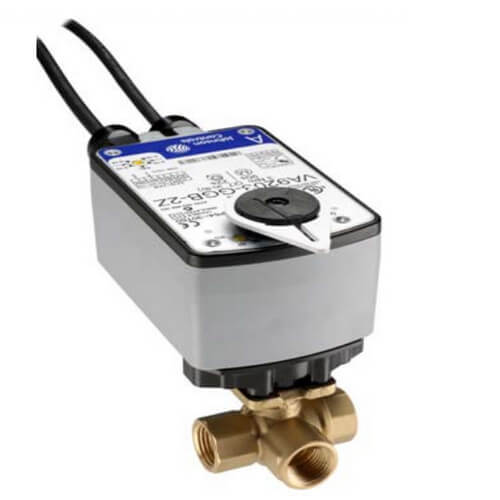

3/4" NPT 3-Way Brass Valve w/ VA9203 85 to 264V On/Off Actuator
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$405.72 each
Backorder
Get it Thu, Jul 23 - Thu, Aug 20
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
27 lb-in Torque
Threaded Connection
3-Way
4.7 Cv
3/4"
Brass
Description
–
Note: This item is a 3-Way Valve, the image displays a 2-Way Valve
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls VA9104, M9106, M9109, and M9100 Series Non-Spring Return and VA2202, M9206, and M9210 Series Spring Return Electric Actuators for on/off, floating, or proportional control.
Features:
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls VA9104, M9106, M9109, and M9100 Series Non-Spring Return and VA2202, M9206, and M9210 Series Spring Return Electric Actuators for on/off, floating, or proportional control.
Features:
- Power Requirements: 85 to 264 VAC at 50/60 Hz
- Electrical Connections: 48 in. (1.2 m) 18 AWG Appliance Cable
- Weather Shield Options (For Field Assembly Only): M9000-341
- 200 PSID Close Off Pressure
Specs
–
| Fail Safe Mode: | Spring Return Port A Open |
|---|---|
| Actuator Type: | On/Off 85 to 264V |
| Size: | 3/4" |
| Flow Capacity (Cv): | 4.7 |
| Connection Type: | Threaded |
| Body Pattern: | 3-Way |
| Material: | Brass |
| Fluid Temperature Range: | 23° to 203°F |
| Torque: | 27 lb-in |
