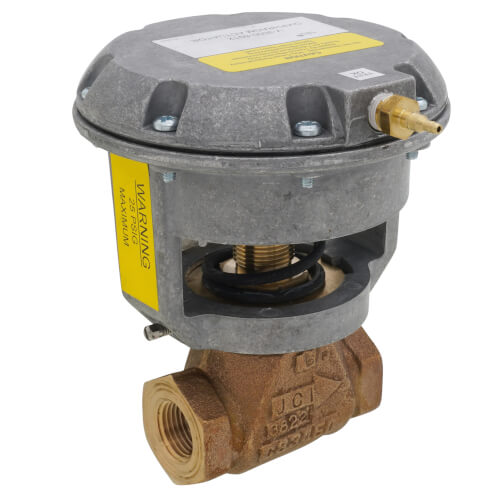

Main product image of 1/2" NPT Normally Open 2-Way Globe Valve, 3 to 6 psig (0.73 Cv)
Magnifying glass
Hover image to zoom

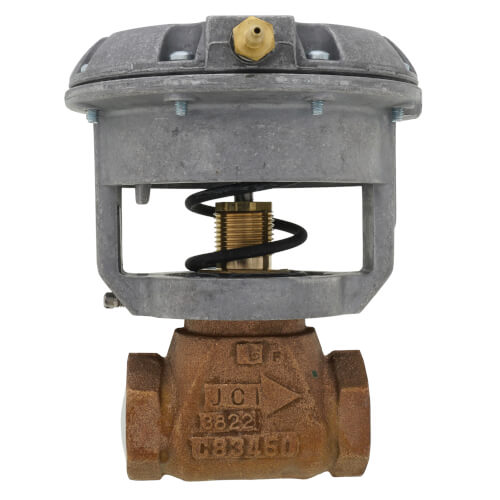

1/2" NPT Normally Open 2-Way Globe Valve, 3 to 6 psig (0.73 Cv)

Brand:
Johnson Controls
SKU:
VG7241CT-3008B
Rating:
(0)
Q&A:
(0)
1/2" NPT Normally Open 2-Way Globe Valve, 3 to 6 psig (0.73 Cv)
Magnifying glass
Hover image to zoom
$306.10 each
In Stock
In Stock
Get 16 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow

MANUALS (3)

Product Overview
Specification Sheet
Install Instructions
Product Overview
Specification Sheet
Install Instructions
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
1/2"
Product Highlight: Connection Type
Threaded Connection
Product Highlight: Flow Capacity (Cv)
0.73 Cv
Product Highlight: Body Pattern
2-Way
Product Highlight: Material
Cast Bronze
Product Highlight: Spring Range
3 to 6 psig

Description

–
VG7000 Series brass trimmed globe valves with V-3000 pneumatic actuators control hot or chilled water or 38 psig saturated steam.

Features:
  • rugged actuator die-cast enclosure, fits VG7000 valves 1/2 through 2 in.
  • effective diaphragm area: 8 sq in. controls: hot or chilled water, 38 psig saturated steam
  • valve trim: brass
  • maximum supply air pressure: 25 psig (172 kPa)
  • fluid temperature: 35 to 284°F (2 to 140°C), 38 psig saturated steam
  • valve body static pressure rating: ANSI Class 250 factory or field assembly
  • for optional V-9502-90 Positioner, add a P to the end of the code number (not available with enclosed spring actuator)

Specs

–
Size:

1/2"

Actuator Type:

Pneumatic

Connection Type:

Threaded

Flow Capacity (Cv):

0.73

Body Pattern:

2-Way

Material:

Cast Bronze

Spring Range:

3 to 6 psig
