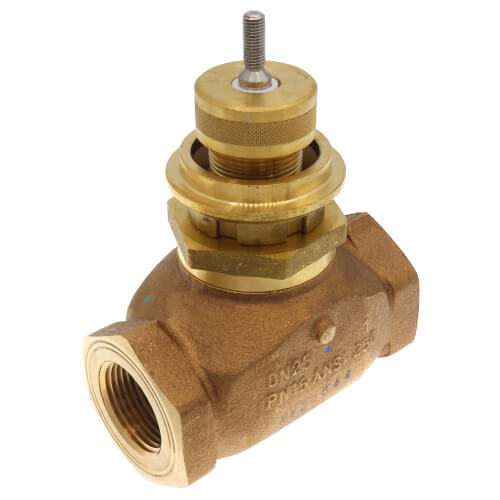

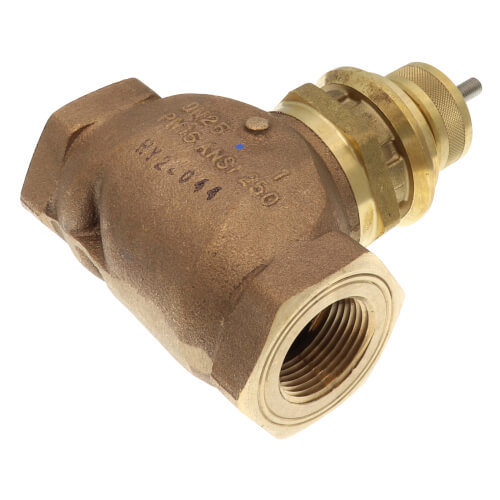

Main product image of 1" NPT Normally Open 2-Way Bronze Valve Body (11.6 Cv)
Magnifying glass
Hover image to zoom

1" NPT Normally Open 2-Way Bronze Valve Body (11.6 Cv)

Brand:
Johnson Controls
SKU:
VG7241NT
Rating:
(0)
Q&A:
(0)
1" NPT Normally Open 2-Way Bronze Valve Body (11.6 Cv)
Magnifying glass
Hover image to zoom
$248.00 each
In Stock
In Stock
Get 4 Thu, Jul 9
Will this part work with my unit?
Click to see if this part is compatible with your unit.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
1"
Product Highlight: Connection Type
Threaded Connection
Product Highlight: Flow Capacity (Cv)
11.6 Cv
Product Highlight: Material
Cast Bronze
Product Highlight: Position
Normally Open
Product Highlight: Body Pattern
2-Way

Description

–
VG7000 Series Bronze Control Valves are designed primarily to regulate the flow of water and steam in response to the demand of a controller in HVAC systems. These valves are available in Normally Open (N.O.), Normally Closed (N.C.), and three-way mixing configurations. Both electric and pneumatic actuators are available for factory or field mounting.

Features:
  • rugged actuator die-cast enclosure, fits VG7000 valves 1/2 through 2 in.
  • effective diaphragm area: 8 sq in.
  • controls: hot or chilled water, 38 psig saturated steam
  • valve trim: brass
  • maximum supply air pressure: 25 psig (172 kPa)
  • fluid temperature: 35 to 284°F (2 to 140°C), 38 psig saturated steam
  • valve body static pressure rating: ANSI Class 250

Specs

–
Size:

1"

Connection Type:

Threaded

Flow Capacity (Cv):

11.6

Material:

Cast Bronze

Position:

Normally Open

Body Pattern:

2-Way
