3-Stage Electric Reheat Relay Module
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$69.62 each
In Stock
Get 4 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Beige
3
Description
–

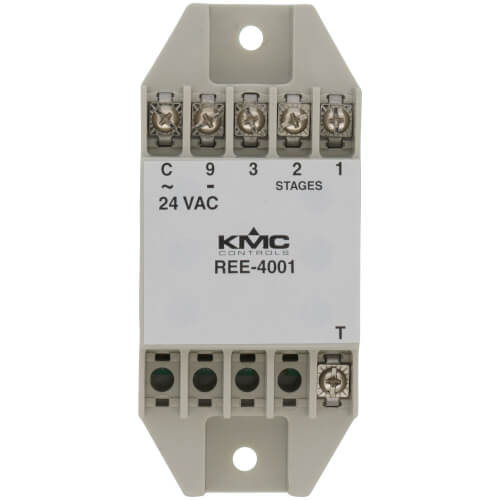

3-Stage Electric Reheat Relay Module
KMC REE-4001 relay modules are designed primarily for use with VAV terminal units in HVAC systems. When used with CTE series room thermostats, up to three stages of reheat may be controlled. They may also be controlled by a 0 to 10 VDC output from a DDC or analog controller.
Each triac output circuit is capable of handling contactors of up to 10 VA @ 24 VAC. The three circuits are calibrated to actuate at equally spaced intervals across the thermostat’s proportional band.
By using the REE-4001, the heating requirements of a particular VAV terminal may be actuated in three separate steps affording more precise temperature control.
For controlling direct expansion compressors in roof top units and other equivalent equipment, see also the REE-4019 three-stage, wide-deadband relay module.
KMC REE-4001 Relay Modules are primarily intended for use with the following thermostat models:
Features:
Note: Image may not be actual representation of item.
KMC REE-4001 relay modules are designed primarily for use with VAV terminal units in HVAC systems. When used with CTE series room thermostats, up to three stages of reheat may be controlled. They may also be controlled by a 0 to 10 VDC output from a DDC or analog controller.
Each triac output circuit is capable of handling contactors of up to 10 VA @ 24 VAC. The three circuits are calibrated to actuate at equally spaced intervals across the thermostat’s proportional band.
By using the REE-4001, the heating requirements of a particular VAV terminal may be actuated in three separate steps affording more precise temperature control.
For controlling direct expansion compressors in roof top units and other equivalent equipment, see also the REE-4019 three-stage, wide-deadband relay module.
KMC REE-4001 Relay Modules are primarily intended for use with the following thermostat models:
- CEE-1103
- CTE-1004
- CTE-1103
- CTE-5002/5012
- CTE-5202
Features:
- Controls up to three stages of reheat
- Control is activated at equally spaced intervals across a thermostat’s proportional band
- Simple installation
Note: Image may not be actual representation of item.
Specs
–
| Product Type: | Relay |
|---|---|
| Supply Voltage: | 24 VAC |
| Wire Size: | 14-22 AWG |
| Enclosure Type: | Flame Retardant Plastic |
| Color: | Beige |
| Operating Temp Range: | 40° to 120°F |
| Stages: | 3 |
