SimplyVAV Room Temp. Sensor, Setpoint Dial, Override, Modular, White (10k Ohms)

SimplyVAV Room Temp. Sensor, Setpoint Dial, Override, Modular, White (10k Ohms)

These compact, stylish, and economical room temperature sensors and transmitters are designed for use in KMC Digital controllers or other building automation systems. They incorporate a 10,000 ohm (@ 77° F) thermistor for precise, stable temperature sensing and offer a variety of features.

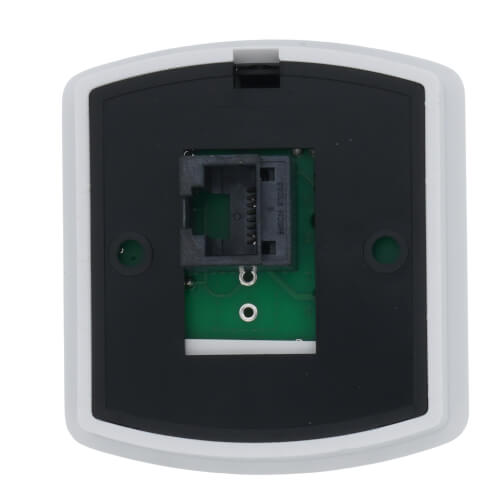

The durable, low-profile, thermostat-style cover is visually appealing. These sensors may be surface mounted on a hollow wall or (using an HMO-6036 universal backplate) to a 2 x 4 in. electrical box.

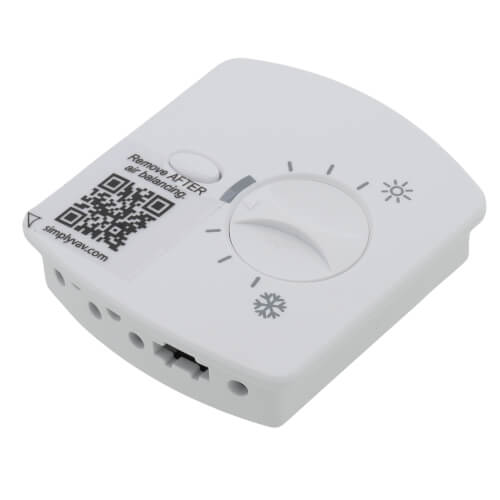

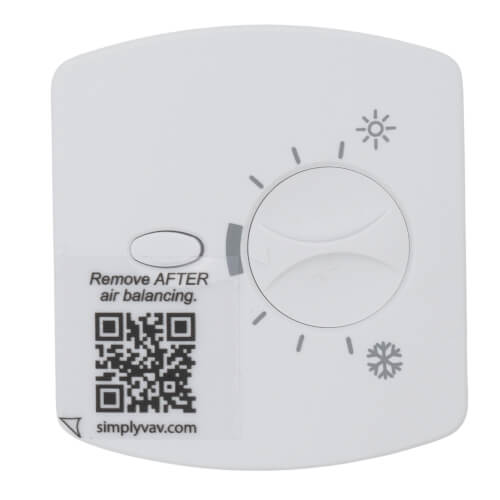

An STE-6014/6017/6019/6018/6020 includes a rotary setpoint dial with warmer/cooler icons.

An STE-6013/6015/6017/6019/6018/6020 allows selection of an override condition by pushing the button on the front. A green status LED (not on the STE- 6017/6019) illuminates according to the user-defined controller configuration (e.g., during setback/setup or during normal/override modes).

An STE-6012/6016 transmitter includes an LCD display for the room temperature and setpoint. The temperature display can be toggled between Fahrenheit and Celsius scales. The setpoint is adjustable via the Up and Down arrow buttons on the front panel. If the system is in occupied/ normal mode, pressing a button raises or lowers the setpoint. When either button is pushed, the display toggles from room temperature to the setpoint. When the button is released, the number displayed is the new setpoint, and the display returns to room temperature after ten seconds. If the system is in unoccupied/setback mode, pressing either button selects override mode. (See Power Requirements in the Specifications section.)

An STE-6010/6014/6015/6016/6017/6018 includes a fourpin EIA-485 (formerly RS-485) data port on the cover’s underside for easy temporary computer connection to the network. (Access with a KMD-5624 cable.)
