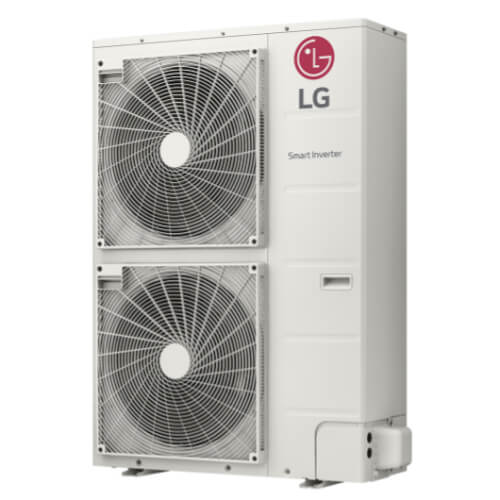

Main product image of 60,000 BTU, R-410A, Multi F MAX Inverter Heat Pump (Outdoor Unit)

Hover image to zoom

60,000 BTU, R-410A, Multi F MAX Inverter Heat Pump (Outdoor Unit)

Name: 60,000 BTU, R-410A, Multi F MAX Inverter Heat Pump (Outdoor Unit)
Brand: LG
SKU: LMU601HV
Price: 4084.05 USD
Availability: OutOfStock

Brand:

SKU:

LMU601HV

Rating:

(0)

Q&A:

(0)

60,000 BTU, R-410A, Multi F MAX Inverter Heat Pump (Outdoor Unit)

Hover image to zoom

LMU601HV has been discontinued

Discontinued July 11, 2025

This product was discontinued by the manufacturer.

MANUALS (5)

This item replaces: LMU600HV

Replacement Parts

View All

Suggested Alternative:

60,000 BTU, R-32, 20.5 SEER2 Multi F MAX Multi Zone Inverter Heat Pump (Outdoor Unit)

Brand:

SKU:KUMXB601A

(0)

VIEW ALTERNATIVE

Product Highlights

–

60000 BTUs

64000 BTUs

3/8"

3/4" SL

208V, 208/230V, 230V

Description

–

This R410A unit is no longer manufactured as per the AIM Act of 2020. While replacement parts are available for repairs, a new unit will require replacing the entire system to support the new A2L R32 refrigerant.

Please visit our Mini Split Air Conditioners for system selection or reach out to Customer Care Team Contact Us for assistance.

Rebates:
You may be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about rebate programs that apply to you. LG Rebate Center

Product Features:

R1 Scroll (Variable Speed) Compressor
Auto operation
Auto restart
Self diagnosis
Defrost / Deicing
Low ambient cooling down to 14°F
Soft start
Restart delay (3 minutes)

Performance:

Nominal Cooling Capacity (Min.-Rated-Max., Btu/h): 10,800~60,000~65,000
Nominal Heating Capacity (Min.-Rated-Max., Btu/h): 12,420~64,000~68,000

Piping:

Refrigerant Charge (lbs) : 11.46
Liquid Line (OD) : 3/8" (1 Each)
Vapor Line (OD): 3/4" (1 Each)
Max Total Piping² : 475.7 ft
Max ODU to IDU Piping: 32.8 / 229.6
Piping Length (no add'l refrigerant, ft): 180.4 ft.
Max Elevation between ODU and IDU: 98.4 ft.
Max Elevation between IDU and IDU: 49.2 ft

Unit Data:

Refrigerant Type: R410A
Refrigerant Control: EEV
Sound Pressure (Cool/Heat) +/-3 dB(A) 56/58
Net Unit Weight (lbs) : 218
Shipping Weight (lbs) : 243
Heat Exchanger Coating GoldFin
Min Number of Indoor Units: 2
Max Number of Indoor Units: 8

Specs

–

Cooling Capacity (BTU):	60000
Heating Capacity (BTU):	64000
Number of Zones:	8
Voltage:	208V 208/230V 230V
Phase:	1
Frequency:	60 Hz
Liquid Line:	3/8"
Suction Line:	3/4"
Refrigerant Type:	R-410A
Energy Star Rated:	No
