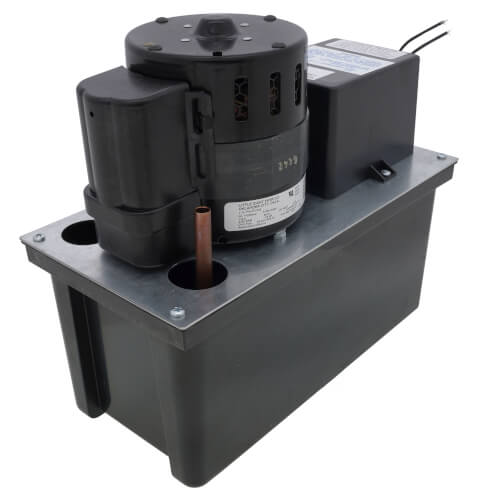

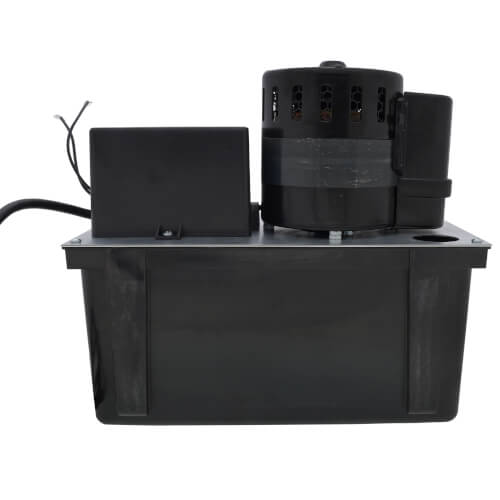

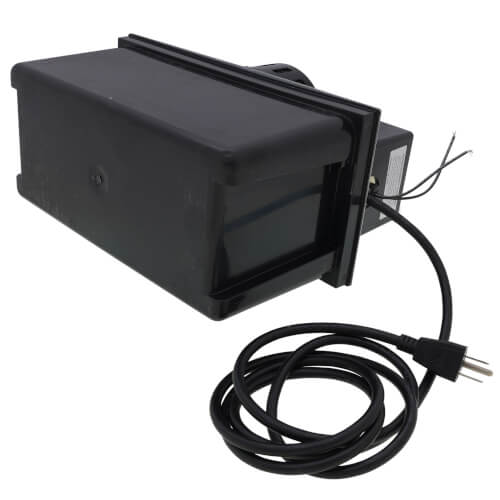

VCL-45ULS, 450 GPH Automatic Condensate Removal Pump w/ Safety Switch (115V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
450 GPH
1/5 HP
Description
–
VCL-45 Series pump is rated for high-efficiency gas furnace applications that produce an acidic condensate
Specifications:
Features:
Specifications:
- Motor - 1/5 HP
- 1 gallon tank capacity
- Intermittent Liquid Temp. up to - 120°F
- Flow - 450 GPH @ 1' of Head
- Discharge - 3/8" O.D.
- Housing - N/A
- Cover - Galvanized steel
- Motor Shaft - Stainless steel
- Shaft Seal - N/A
- Screen - ABS
- Cord Length - 6 ft
- Weight - 13 lbs
- Height - 10.5"
- Width - 6"
- Length - 12"
- Volute - ABS
- Impeller - Polypropylene
- Electrical - 115 V, 60 Hz, 3.5 Amps, 185 Watts, thermally protected motor
Features:
- Vertical type pump unit
- Leakproof, rustproof, ABS tank
- ABS switch cover and pump stand
- 3/8" O.D. copper tube discharge
- Safety switch included - can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
- 45' shut-off head
- UL/CSA listed
- Thermal overload protected
Specs
–
| Shutoff Head (ft.): | 45' |
|---|---|
| Flow at 1 FT Head: | 450 GPH |
| Includes: | 3/8" Tubing Safety Switch |
| Voltage: | 115V |
| Horse Power: | 1/5 |
