61432 has been discontinued
Discontinued February 4, 2026
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:

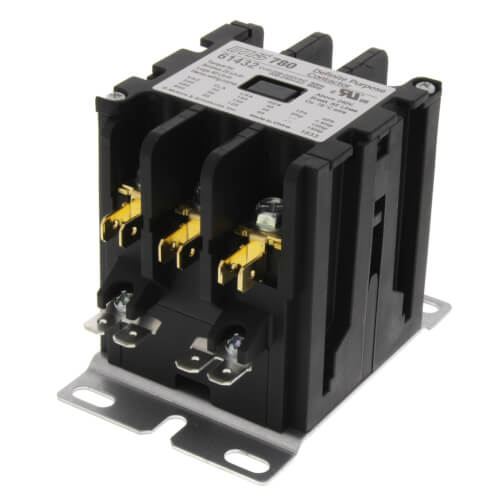

3 Pole Contactor w/ Screw Type Termination, A2L Compliant (30A, 208-240V)
Product Highlights
–
208V, 240v
30 Amps
Description
–
MARS 780 - 3 pole contactors are designed for demanding applications. The enclosed body design provides quiet operation and improved durability by reducing the intrusion of dust and dirt. Side attachment rails for auxiliary
switches (30-60 amp contactors) allow attachment of MARS 780 or Furnas auxiliary switches. Silver-cadmium oxide contacts provide increased contact life when switching inductive loads.
Features:
Features:
- Large arch window box lugs
- SEMS screws or box lugs available on 30 amp contactors
- Recessed push to test button (not on 75 and 90 amp contactors)
- Enclosed body design
- Accepts MARS 780 and Furnas auxiliary switches
- Use standard MARS 780 replacement coils
- Dual QC coil terminals plus screw terminal for easy termination and jumper arrangements
- Coils - class F insulation - 600 volt rating - Foot print compatible
Specs
–
| Type: | Contactor |
|---|---|
| Poles: | 3 |
| Voltage: | 208V 240v |
| Amperage: | 30 |
