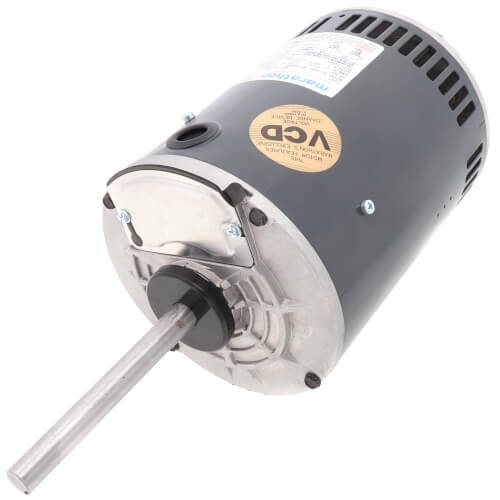

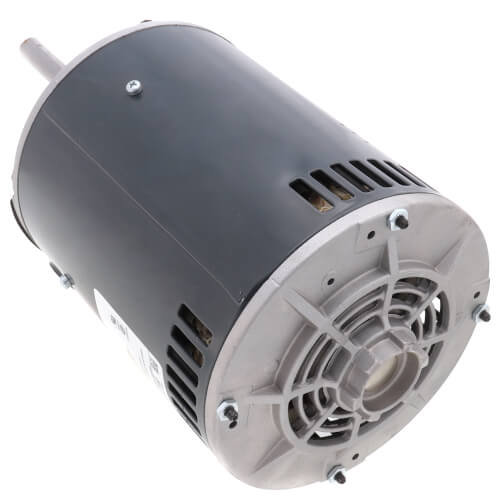

Condenser Fan & Heat Pump - 1-3/4 HP, 1140 RPM, 3 PH, Reversible (200-230/460V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$406.88 each
In Stock
Get 26 Tomorrow, Jun 25
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
200-230/460V
1140 RPM
Reversible
1-3/4 HP
Round Belly Band
Description
–
Commercial condenser fans may be installed outdoors. These motors need to be mounted within the airflow of the fan
for proper cooling. Used on Trane, Carrier, Climatrol and York units, 5 tons and larger.
Features:
Features:
- 70°C ambient (except as noted)
- Enclosed shaft end bracket, vented frame
- Automatic reset thermal protector
- Nameplate 60/50 hertz 190/380 volts, at next lower HP (except as noted)
- Double sealed ball bearings
- 5/8" Dia. x 5" long shaft with flat and keyway
- Ball bearings
- Threaded lead exit
- Patented VCD - Voltage Change Device
- 4 Locating screws 90 degrees apart, 3.33" from outer edge of shaft slinger
- Hubs on both ends will accept resilient base kits, see Accessories section (except X524 and X526 - horizontal only)
- UL Recognized and CSA Certified
- External shaft slinger on all, internal slinger on 5K models
Specs
–
| Horse Power: | 1-3/4 |
|---|---|
| Type: | Condenser Pump |
| RPM: | 1140 |
| Voltage: | 200-230/460V |
| Phase: | 3 |
| Mount: | Round Belly Band |
| Rotation: | Reversible |
| Bearings: | Ball |
| Frame: | 56Y |
| Enclosure Type: | Open Air Over |
| Motor: | Squirrel Cage Induction Run |
| Duty: | Continuous |
| Poles: | 6 |
| Speeds: | 1 |
| Max Ambient Temp (°F): | 158°F |
| Insulation Class: | H |
| Overload Protection: | Automatic Lock Rotor Only |
| Motor Orientation: | Horizontal |
