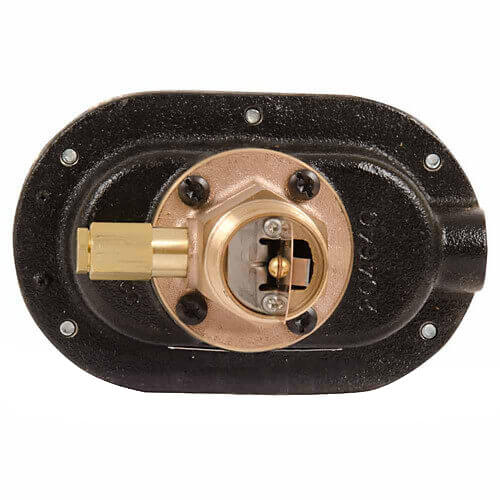

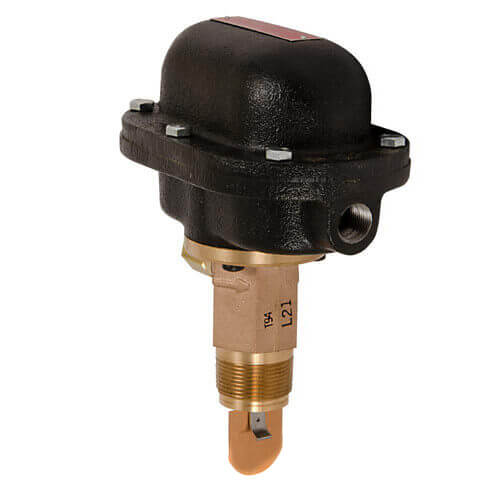

FS7-4E, 1-1/4" Flow Switch w/ NEMA 7 & 9 enclosure
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
300 MAX PSI
1-1/4"
7.4 Amps
240v, 120v
32°F - 225°F
Description
–
For hazardous environment applications requiring a NEMA 7 (Class I, Group C or D) or NEMA 9 Class II, Group E, F, or G) rated flow switch
Optional Features
- 1-1/4" NPT
- Brass with sealed tube construction
- Single pole, double throw snap switch
- Magnetic switching mechanism
- Sensitivity adjusting screw makes flow adjustment easy
- Paddles can be trimmed to suit application needs
- Minimum temperature (fluid or ambient) 32 Deg. F (0 Deg C)
- Maximum temperature 300 Deg. F (149 Deg. C)
- Maximum operating pressure 300 psi (21 kg/cm2)
- 1000 psi (70 kg/cm2) - Stainless Steel models
Optional Features
- Extended paddle arm
- Stainless steel body and paddles
- BSPT threads
Specs
–
| Max Pressure (PSI): | 300 |
|---|---|
| Size: | 1-1/4" |
| Application: | Liquid Flow |
| Type: | Industrial |
| Amperage: | 7.4 |
| Voltage: | 240v 120v |
| Switch: | SPDT |
| Hertz: | 50 60 |
| Temperature Range (F): | 32°F - 225°F |
